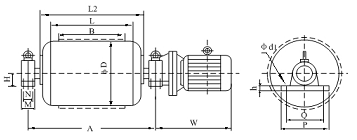

WZ型外装式电动滚筒安装尺寸
D | B | A | L | H | M | N | P | Q | h | ds | W |
630 | 500 | 850 | 600 | 120 | 90 | ─ | 340 | 280 | 35 | 27 | ≤ 850 |
650 | 1000 | 750 | |||||||||
800 | 1300 | 950 | 140 | 130 | 80 | 400 | 330 | ||||
1000 | 1500 | 1150 | |||||||||
1200 | 1750 | 1400 | 160 | 160 | 90 | 440 | 360 | 50 | 34 | ||
800 1000 | 800 | 1300 | 950 | 140 | 130 | 80 | 400 | 330 | 35 | 27 | ≤ 850 |
1000 | 1500 | 1150 | |||||||||
1200 | 1750 | 1400 | 160 | 160 | 90 | 440 | 360 | 50 | 34 | ||
1400 | 2000 | 1600 |
注：W 尺寸为 WZN 、 WZS 型电动滚筒尺寸
