供应中包DXDS-F350E粉末包装设备

产地	华县
产品认证	CEE
额定电压	12V
类型	分样筛
包装类型	盒
品牌	中包
型号	DXDS-F350E
加工定制	是

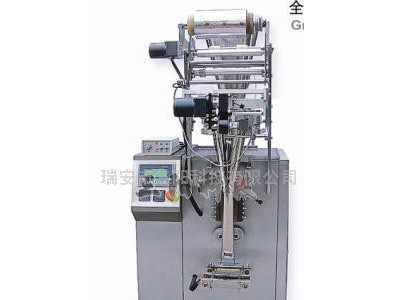

DXDS-F350E智能型四边封粉末包装机 特点： 1、滚筒热封、四边封口、连续不间断运行，不仅速度快，运行平稳，噪音低，而且封口牢固，密封性好，袋型平整、精美，包装效率高。
2、采用进口PLC及液晶触摸式显示屏实现人机菜单式对话，使各项设置操作简单而明确。
3、采用光电跟踪系统，自动计数，并保证包装袋双面印刷图案的自动对版。
4、采用进口变频器无级调速，智能温控仪调节封口温度，且性能可靠，操作方便。
5、采用步进电机传动，高细分驱动更高**，袋长可以在触摸屏内直接设定，同时纵封与横封能够自动同步跟踪。比机器传动需要手动调节更省时节材，且拉袋平稳准确，调节更**。
6、采用螺杆式加料装置且计量准确，并且能在高温下填充被包装物，更适合高速袋包装机的运用。
7、适用性强，切断方式可选用平切或连袋点切，并可选配墨轮打印机。 用途：    适用于包装医药、食品、化工等行业中的松散状、无粘性并具有一定流动性的粉状物料的中小袋包装。如：面粉、咖啡粉、藕粉、豆奶粉、奶粉、壮骨粉、药粉等 主要技术参数: 袋 长  范 围：50-250 mm
袋 宽  范 围：50-85 mm
**高包装速度：60 袋/分  （依物料和规格不同而定）
填 充  容 量：2-50ML 适 应  包 材：PET/AL/PE PET/PE NY/AL/PE NY/PE
包材**大宽度：350 mm
包材**大外径：Φ300 mm
包 材  芯 径：Φ70-76 mm
电        源：220V  50Hz
总   功   率：5.5Kw
机 器  重 量：650 Kg
机 器  尺 寸：1400mm*1000mm*1700mm(长*宽*高)

Feature:
1.Two-step roller four-side sealing, continuous running not only fast in speed, stable in running, low in noise, but also firm in sealing, reliable in airtight, with bags coming smoothly and fine, high in packing efficiency.
2.An imported frequency changer is adopted for step-less speed adjusting, intelligent temperature control regulates the temperature at the sealing. It has reliable performance, convenient operation.
3.Photoelectric tracking system is adopted to ensure the automatic correcting of the double face printing design on the packing bags, precise in counting.
4.An imported transducer is adopted to make adjusting easy. Intelligent temperature controller regulates sealing making it even more convenient.
5.step motor/servo motor driver is adopted, pouch length can be **p directly at the touching screen, at the same time longitudinal sealing and transverse sealing be able to auto in-phase tracking, it saves more time and material compare to mechanical driver, and with bag pilling more smooth and even easier to adjust.
6.Screw type feeding system is adopted, precise in measuring, can fill material at high temperature, more suitable to high speed bag packing machine’s using.
7.Applicable to a wide range of use. Cutting method can choose flat cutting or fracture line cutting, and can match with link coding machine.

Usage：
Suitable for packing loose, non sticky powder material such as bean powder, milk powder, drug powder, bone-stronger powder, lotus powder and much more. Most commonly used in the pharmacy, food, dairy, and agriculture industries.
