美国ALKON单向阀SERIES系列P-4产品参数

威斯特工业专业销售ALKON产品,主要产品有:ALKON阀门、ALKON接头、ALKON电磁阀、ALKON气动阀、ALKON换向阀、ALKON针阀、ALKON单向阀、ALKON流量调节阀、ALKON消音器。
美国ALKON单向阀SERIES系列 P-4是流体只能沿进水口流动，出水口介质却无法回流，俗称单向阀。单向阀又称止回阀或逆止阀。用于液压系统中防止油流反向流动,或者用于气动系统中防止压缩空气逆向流动。单向阀有直通式和直角式两种。直通式单向阀用螺纹连接安装在管路上。直角式单向阀有螺纹连接、板式连接和法兰连接三种形式。
美国ALKON单向阀SERIES P - 4-WAY VALVES产品参数：
MANIFOLD ASSEMBLY:
Manifolds canbepurchasedseparatelyorvalves canbeassembled
to them at the factory.
Hardened mountingpins (2) are screwedintothe valvebody (5)
until flush, and then the valve unit is inserted into the manifold
block (4) afterpositioningthe O-rings (1). By tighteningthe
Allenheadscrews (3), the valves are seatedandconnectedto
the manifold block. This unique method assures a leak proof
assembly. When manifolds are purchased separately, each kit
contains mountingpins, set screws and O-rings for thepurchased
number of stations.
ELECTRICAL CHARACTERISTICS：

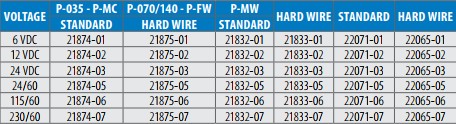

REPLACEMENT COILS：

MANIFOLDS：

CONNECTORS:

In addition to the standard connectors
andcoils shown(see individual valve
packages forpartnumbers), we alsooffer
custom configurations such as different
length cords, lighted wafers, light adapters,
greenor redLED’s, anda varietyofothers.
Contact your local Alkon distributor for
more information.
DIMENSIONS：
技术参数
公称通径:21/16“~41/16“
工作压力：2,000~15,000PSI
温度：-60°C~+121°C(K,U)
产品规范级别：PSL3~4
产品性能级别：PR1~2
材料级别：AA~FF
