主要尺寸 (mm) | 轴承 型号 | 额定负荷 (N) 静动 | 极限转速 (rpm) 脂润滑 油润滑 | 键槽 b t1 | 重量 (kg) (参考) | |||||||
d | D | L | r | e | ||||||||
28 | 70 | 36 | 1.3 | 3.0 | 300752906 | 82300 | 98300 | 7000 | 9000 | 8 | 3.3 | 0.73 |
70 | 36 | 1.3 | 4.0 | 400752906 | 82300 | 98300 | 7000 | 9000 | 8 | 3.3 | 0.73 | |
70 | 36 | 1.3 | 5.0 | 500752906 | 82300 | 98300 | 7000 | 9000 | 8 | 3.3 | 0.73 | |
95 | 54 | 1.3 | 0.75 | 80752906k | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
95 | 54 | 1.3 | 1.0 | 100752906k | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
95 | 54 | 1.3 | 1.5 | 150752906k | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
95 | 54 | 1.3 | 2.0 | 200752906k | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
95 | 54 | 1.3 | 3.0 | 300752906k | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
95 | 54 | 1.3 | 3.5 | 350752906k | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
95 | 54 | 1.3 | 4.0 | 400752906k | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
95 | 54 | 1.3 | 5.0 | 500752906k | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 1.5 | |
35 | 86.5 | 50 | 1.8 | 0.75 | 80752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 |
86.5 | 50 | 1.8 | 0.85 | 90752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 1.0 | 100752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 1.25 | 130752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 1.5 | 150752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 2.0 | 200752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 2.5 | 250752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |

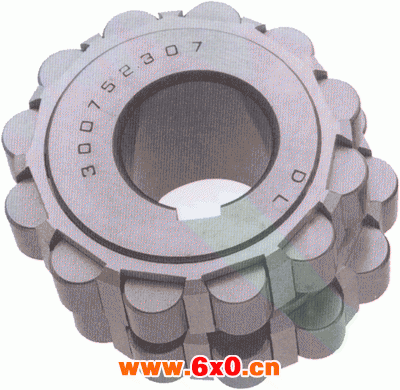

86.5 | 50 | 1.8 | 3.0 | 300752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 3.5 | 350752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 4.0 | 400752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 4.5 | 450752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 5.0 | 500752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 5.5 | 550752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 6.0 | 600752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 6.5 | 650752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
86.5 | 50 | 1.8 | 7.0 | 700752307 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
11.3 | 62 | 1.8 | 1.0 | 100752307k | 22000 | 291000 | 4500 | 5600 | 10 | 3.3 | 3.5 | |
11.3 | 62 | 1.8 | 1.25 | 130752307k | 22000 | 291000 | 4500 | 5600 | 10 | 3.3 | 3.5 | |
11.3 | 62 | 1.8 | 1.5 | 150752307k | 22000 | 291000 | 4500 | 5600 | 10 | 3.3 | 3.5 |
