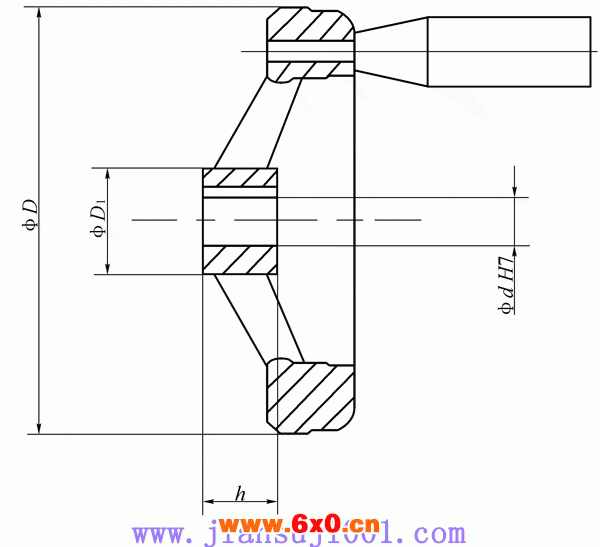

手轮(HW)
型号 | d | D | D1 | H | h |
CS2.5-HW | 9 | 80 | 23 | 35 | 17 |
CS5-HW | 10 | 100 | 25 | 35 | 17 |
CS10-HW | 14 | 125 | 31 | 44 | 22 |
CS25-HW | 16 | 160 | 40 | 51 | 27 |
CS50-HW | 20 | 200 | 48 | 55 | 30 |
CS150-HW | 25 | 250 | 52 | 60 | 34 |
CS250-HW | 30 | 320 | 60 | 64 | 40 |
CS350-HW | 35 | 400 | 65 | 72 | 45 |
CS500-HW | 48 | 630 | 80 | 80 | 50 |
手轮(HW)
型号 | d | D | D1 | H | h |
CS2.5-HW | 9 | 80 | 23 | 35 | 17 |
CS5-HW | 10 | 100 | 25 | 35 | 17 |
CS10-HW | 14 | 125 | 31 | 44 | 22 |
CS25-HW | 16 | 160 | 40 | 51 | 27 |
CS50-HW | 20 | 200 | 48 | 55 | 30 |
CS150-HW | 25 | 250 | 52 | 60 | 34 |
CS250-HW | 30 | 320 | 60 | 64 | 40 |
CS350-HW | 35 | 400 | 65 | 72 | 45 |
CS500-HW | 48 | 630 | 80 | 80 | 50 |
