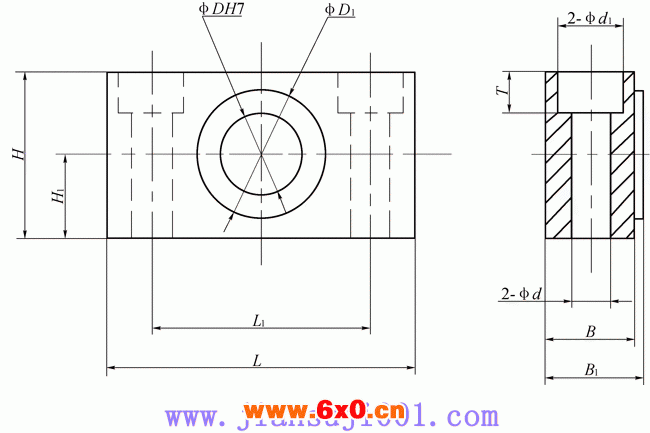

耳轴支座（LB）
| 型号 | D | D1 | H | H1 | L | L1 | B | B1 | d | d1 | T |
| CS2.5-LB | 12 | 20 | 30 | 15 | 50 | 35 | 16 | 18 | 7 | 11 | 7 |
| CS5-LB | 15 | 25 | 34 | 17 | 65 | 45 | 20 | 22 | 9 | 15 | 9 |
| CS10-LB | 20 | 30 | 38 | 19 | 70 | 50 | 20 | 22 | 9 | 15 | 9 |
| CS25-LB | 25 | 35 | 54 | 27 | 80 | 58 | 20 | 22 | 11 | 18 | 11 |
| CS50-LB | 35 | 50 | 70 | 35 | 100 | 70 | 30 | 32 | 13 | 22 | 13 |
| CS150-LB | 45 | 60 | 80 | 40 | 140 | 100 | 40 | 42 | 22 | 35 | 21 |
| CS250-LB | 70 | 90 | 124 | 62 | 220 | 160 | 63 | 65 | 32 | 50 | 31 |
| CS350-LB | 80 | 105 | 144 | 72 | 245 | 180 | 63 | 65 | 38 | 60 | 37 |
| CS500-LB | 90 | 120 | 160 | 80 | 280 | 20 | 80 | 82 | 50 | - | - |
注：成对使用
