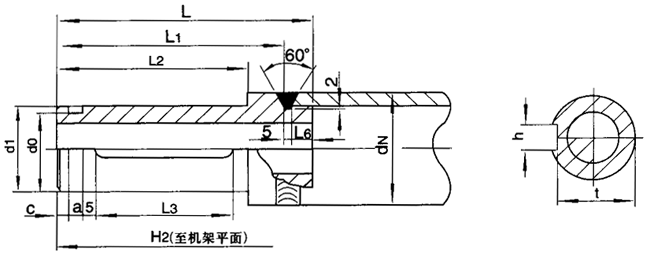

TⅠ型机架搅拌轴头尺寸
搅拌轴公称直径dN | 联接轴径d1 | d0 | a | b | t | c | L | L1 | L2 | L3 | L6 | H2 |
40 | 40 | 35 | 5 | 12 | 35 | 4 | 120 | 105 | 85 | 55 | 10 | 280 |
50 | 40 | 35 | 5 | 12 | 35 | 4 | 135 | 120 | 85 | 55 | 10 | 280 |
65 | 50 | 42 | 6 | 14 | 44.5 | 6 | 140 | 120 | 100 | 70 | 15 | 315 |
80 | 60 | 50 | 8 | 18 | 53 | 7 | 175 | 155 | 130 | 100 | 15 | 340 |
95 | 70 | 60 | 8 | 20 | 62.5 | 7 | 175 | 155 | 130 | 100 | 15 | 350(340) |
110 | 90 | 80 | 10 | 25 | 81 | 8 | 220 | 200 | 170 | 140 | 15 | 395 |
125 | ||||||||||||
140 |
注：TⅠ4型机架搅拌轴dN95，H2为（340）
