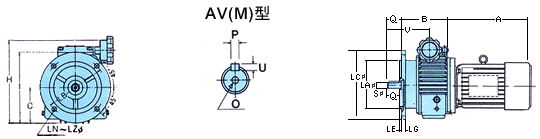

立式基本型(法兰直结型)
型 式 | B | C | H | I | V | LA | LB | LC | LE | LG | LN | LZ | 出 力 轴 尺 寸 | AV (Kg) | ||||
S(h6) | Q | P | U | O | ||||||||||||||
02AV(M) | 110 | 66 | 198 | 153 | 99 | 110 | 130 | 160 | 3.5 | 10 | 4 | 10 | 11 | 23 | 5 | 5 | M5 | 8.5 |
05AV(M) | 138 | 87 | 220 | 174 | 110 | 110 | 130 | 160 | 3.5 | 12 | 4 | 12 | 14 | 30 | 5 | 5 | M5 | 15 |
1AV(M) | 152 | 103 | 251 | 205 | 129 | 130 | 165 | 200 | 3.5 | 12 | 4 | 12 | 19 | 40 | 6 | 6 | M6 | 22 |
2AV(M) | 190 | 120 | 295 | 241 | 157 | 130 | 165 | 200 | 4 | 16 | 4 | 15 | 24 | 50 | 8 | 7 | M8 | 37 |
3AV(M) 5AV(M) | 220 | 147 | 357 | 295 | 187 | 180 | 215 | 250 | 4 | 16 | 4 | 15 | 28 | 60 | 8 | 7 | M8 | 68 72 |
