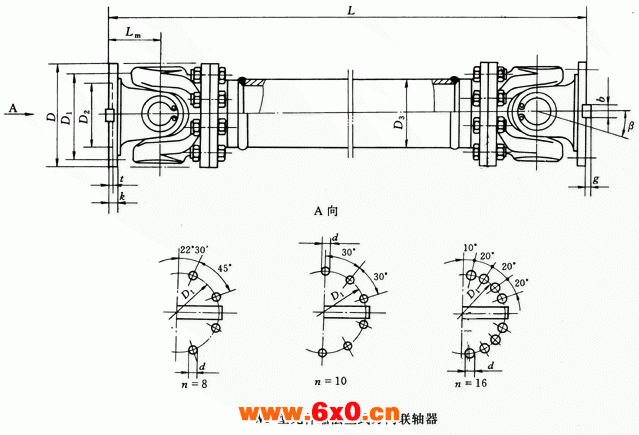

WF型无伸缩法兰式万向联轴器外形及安装尺寸（JB/T5513-91）`
WF型无伸缩法兰式万向联轴器基本参数和主要尺寸（JB/T5513-91）/mm
型号 | 回转 直径 D | 公称转 矩Tn/ kN·m | 疲劳转 矩Tf/ kN·m | 轴线折 角β/ (°)≤ | Lmin | D1 (js11) | D2 (H7) | D3 | Lm | n-d | k | t | b (h9) | g | 转动惯量 I/kg·m2 | 质量m/kg | ||
Lmin | 增长100 | Lmin | 增长100 | |||||||||||||||
SWC180WF | 180 | 12.5 | 6.3 | 25 | 560 | 155 | 105 | 114 | 110 | 8-17 | 17 | 5 | - | - | 0.248 | 0.007 | 58 | 2.8 |
SWC225WF | 225 | 40 | 20 | 15 | 610 | 196 | 135 | 152 | 120 | 8-17 | 20 | 5 | 32 | 9 | 0.636 | 0.0234 | 93 | 4.9 |
SWC250WF | 250 | 63 | 31.5 | 15 | 715 | 218 | 150 | 168 | 140 | 8-19 | 25 | 6 | 40 | 12.5 | 1.352 | 0.0277 | 143 | 5.3 |
SWC285WF | 285 | 90 | 45 | 15 | 810 | 245 | 170 | 194 | 160 | 8-21 | 27 | 7 | 40 | 15 | 2.664 | 0.051 | 220 | 6.3 |
SWC315WF | 315 | 125 | 63 | 15 | 915 | 280 | 185 | 219 | 180 | 10-23 | 32 | 8 | 40 | 15 | 4.469 | 0.0795 | 300 | 8 |
SWC350WF | 350 | 180 | 90 | 15 | 980 | 310 | 210 | 267 | 194 | 10-23 | 35 | 8 | 50 | 16 | 7.388 | 0.2219 | 412 | 15 |
SWC390WF | 390 | 250 | 125 | 15 | 1100 | 345 | 235 | 267 | 215 | 10-25 | 40 | 8 | 70 | 18 | 13.184 | 0.2219 | 588 | 15 |
SWC440WF | 440 | 355 | 180 | 15 | 1290 | 390 | 255 | 325 | 260 | 16-28 | 42 | 10 | 80 | 20 | 23.25 | 0.4744 | 880 | 21.7 |
SWC490WF | 490 | 500 | 250 | 15 | 1360 | 435 | 275 | 325 | 270 | 16-31 | 47 | 12 | 90 | 22.5 | 40.75 | 0.4744 | 1173 | 21.7 |
SWC550WF | 550 | 710 | 355 | 15 | 1510 | 492 | 320 | 426 | 305 | 16-31 | 50 | 12 | 100 | 22.5 | 68.48 | 1.357 | 1663 | 34 |
SWC620WF | 620 | 1000 | 500 | 15 | 1690 | 555 | 380 | 426 | 340 | 10-38 | 55 | 12 | 100 | 25 | 127.53 | 1.357 | 2332 | 34 |
注：1.Tf为在交变负荷下按疲劳强度所允许的转矩。
2.L为安装长度，按需要确定。
