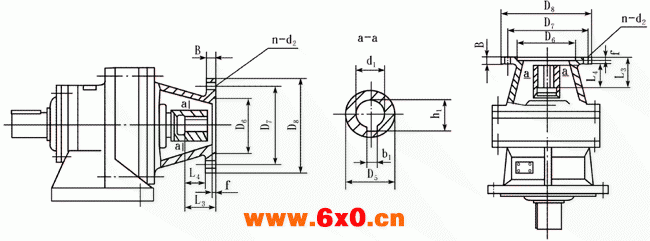

输入功率 | 电动机机座号 | D5 | d1公差 | b1 | h1 | L4 | D6公差 | D7 | D8 | f | B | n | d2 | L3 | ||
0.25 0.37 | 71 | 37 | 14 | F7 | 5 | 16.3 | 16 | 110 | H8 | 130 | 160 | 4 | 12 | 4 | 10 | 30 |
0.55 0.75 | 801 802 | 37 | 19 | 6 | 21.8 | 27 | 130 | 165 | 200 | 4 | 12 | 4 | 12 | 40 | ||
1.1 1.5 | 90S 90L | 47 | 24 | 8 | 27.3 | 33 | 130 | 165 | 200 | 4 | 15 | 4 | 12 | 50 | ||
2.2 3 4 | 100L 112M | 55 | 28 | 8 | 31.3 | 41 | 180 | 215 | 250 | 5 | 17 | 4 | 15 | 60 | ||
5.5 7.5 | 132S 132M | 65 | 38 | 10 | 41.3 | 57 | 230 | 265 | 300 | 5 | 18 | 4 | 15 | 80 | ||
11 15 | 160M 160L | 75 | 42 | 12 | 45.3 | 81 | 250 | G8 | 300 | 350 | 5 | 20 | 4 | 19 | 110 | |
18.5 | 200L | 105 | 55 | E7 | 16 | 59.3 | 80 | 300 | 350 | 400 | 6 | 25 | 4 | 19 | 110 | |
22 | 200L | 105 | 55 | 16 | 59.3 | 80 | 300 | 350 | 400 | 6 | 30 | 4 | 19 | 109 | ||
