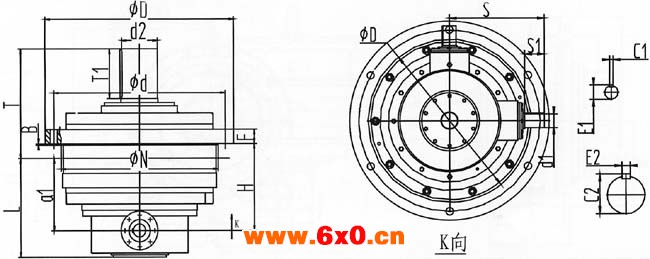

NWZL系列三环减速器尺寸图表
规格 | 轮廓尺寸 | 法兰联接尺寸 | 质量 (kg) | ||||||||||
a1 | D | S | T | L | H | B | N | d | 6-k | F | |||
215 | 150 | 460 | 240 | 280 | 210 | 180 | 8 | 350 | 390 | 6-¢22 | 20 | 200 | |
255 | 180 | 530 | 280 | 305 | 250 | 210 | 8 | 420 | 460 | 6-¢22 | 25 | 255 | |
300 | 210 | 650 | 390 | 380 | 300 | 260 | 8 | 510 | 560 | 6-¢26 | 30 | 420 | |
350 | 250 | 730 | 400 | 430 | 350 | 300 | 10 | 600 | 650 | 6-¢26 | 30 | 660 | |
400 | 280 | 800 | 430 | 480 | 390 | 330 | 10 | 670 | 720 | 6-¢26 | 35 | 900 | |
450 | 300 | 820 | 440 | 500 | 420 | 350 | 10 | 680 | 730 | 6-¢26 | 35 | 1040 | |
500 | 313 | 930 | 483 | 530 | 440 | 370 | 10 | 780 | 840 | 6-¢32 | 40 | 1650 | |
550 | 360 | 1030 | 545 | 620 | 500 | 420 | 12 | 870 | 930 | 6-¢32 | 45 | 2150 | |
600 | 440 | 1170 | 660 | 680 | 610 | 500 | 12 | 1000 | 1080 | 6-¢38 | 50 | 3010 | |
670 | 480 | 1270 | 700 | 726 | 654 | 550 | 12 | 1080 | 1180 | 6-¢38 | 55 | 4070 | |
750 | 500 | 1490 | 780 | 800+80 | 696 | 580 | 12 | 1320 | 1400 | 6-¢44 | 60 | 5300 | |
规格 | 额定输 出转矩 (kN.m) | 高速轴伸(35.8≥i≤179.2) | 高速轴伸(i≥190.4) | 低速轴伸 | |||||||||
d1 | S1 | C1 | E1 | d1 | S1 | C1 | E1 | D2 | T1 | C2 | E2 | ||
215 | 4 | 35k6 | 58 | 38 | 10 | 28k6 | 42 | 25 | 6 | 75m6 | 105 | 79.5 | 20 |
255 | 7 | 35k6 | 58 | 38 | 10 | 28k6 | 42 | 25 | 6 | 90m6 | 130 | 95 | 25 |
300 | 11 | 42k6 | 82 | 45 | 12 | 35k6 | 58 | 38 | 10 | 110m6 | 165 | 116 | 28 |
350 | 16 | 48m6 | 82 | 51.5 | 14 | 42m6 | 82 | 45 | 12 | 130m6 | 200 | 137 | 32 |
400 | 25 | 55m6 | 82 | 59 | 16 | 48m6 | 82 | 51.5 | 14 | 150m6 | 200 | 158 | 36 |
450 | 36 | 65m6 | 105 | 69 | 18 | 55m6 | 105 | 59 | 16 | 170m6 | 240 | 179 | 40 |
500 | 48 | 70m6 | 105 | 74.9 | 20 | 65m6 | 105 | 64 | 18 | 180m6 | 240 | 190 | 45 |
550 | 68 | 75m6 | 105 | 79.5 | 20 | 65m6 | 105 | 69 | 18 | 200m6 | 280 | 210 | 50 |
600 | 95 | 80m6 | 130 | 85 | 22 | 70m6 | 105 | 74.5 | 20 | 220m6 | 280 | 231 | 50 |
670 | 123 | 90m6 | 130 | 95 | 25 | 80m6 | 130 | 85 | 22 | 250m6 | 330 | 262 | 56 |
750 | 173 | 100m6 | 165 | 106 | 28 | 90m6 | 130 | 95 | 25 | 280m8 | 380 | 292 | 63 |
