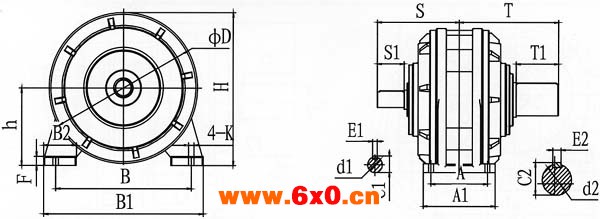

NW系列三环减速器外形尺寸图表
规格 | 额定输 出转矩 (kN.m) | 中心高 (h) | 轮廓尺寸 | 地脚尺寸 | |||||||||
D | S | T | H | A | A1 | B | B1 | B2 | 4-k | F | |||
215 | 3.6 | 200 | 340 | 220 | 280 | 440 | 180 | 220 | 380 | 440 | 130 | 4-¢22 | 25 |
255 | 6.5 | 210 | 410 | 255 | 305 | 500 | 184 | 220 | 460 | 520 | 160 | 4-¢22 | 30 |
300 | 11 | 260 | 500 | 300 | 380 | 590 | 240 | 300 | 560 | 640 | 200 | 4-¢26 | 40 |
350 | 16 | 300 | 580 | 320 | 430 | 690 | 264 | 314 | 560 | 740 | 240 | 4-¢26 | 40 |
400 | 25 | 350 | 650 | 295 | 480 | 740 | 315 | 370 | 720 | 800 | 260 | 4-¢26 | 45 |
450 | 36 | 370 | 660 | 365 | 500 | 780 | 330 | 390 | 740 | 820 | 280 | 4-¢32 | 45 |
500 | 48 | 400 | 730 | 420 | 530 | 820 | 360 | 430 | 820 | 920 | 300 | 4-¢38 | 50 |
550 | 68 | 450 | 840 | 460 | 620 | 950 | 400 | 480 | 940 | 1040 | 300 | 4-¢38 | 60 |
600 | 95 | 550 | 980 | 500 | 660 | 1120 | 440 | 540 | 1100 | 1200 | 360 | 4-¢44 | 70 |
670 | 123 | 600 | 1060 | 574 | 726 | 1200 | 470 | 550 | 1240 | 1340 | 400 | 4-¢44 | 80 |
750 | 173 | 700 | 1240 | 610 | 800 | 1450 | 530 | 610 | 1400 | 1500 | 440 | 4-¢50 | 80 |
840 | 213 | 750 | 1400 | 660 | 835 | 1550 | 560 | 640 | 1580 | 1700 | 440 | 4-¢50 | 85 |
950 | 311 | 900 | 1640 | 710 | 1020 | 1820 | 600 | 750 | 1780 | 1900 | 600 | 4-¢58 | 95 |
1070 | 469 | 950 | 1800 | 774 | 1060 | 1950 | 650 | 770 | 2040 | 2160 | 720 | 4-¢58 | 100 |
规格 | 质量 (kg) | 高速轴伸(i≤23) | 高速轴伸(i≥25.5) | 低速轴伸 | |||||||||
d1 | S1 | C1 | E1 | d1 | S1 | C1 | E1 | D2 | T1 | C2 | E2 | ||
215 | 160.0 | 35k6 | 58 | 38 | 10 | 35k6 | 58 | 38 | 10 | 75m6 | 105 | 79.5 | 20 |
255 | 208.0 | 45k6 | 82 | 48.5 | 14 | 45k6 | 82 | 48.5 | 14 | 90m6 | 130 | 95 | 25 |
300 | 352.0 | 50k6 | 82 | 53.3 | 14 | 50k6 | 82 | 53.3 | 14 | 110m6 | 165 | 116 | 28 |
350 | 544.0 | 60m6 | 82 | 64 | 18 | 55m6 | 82 | 59 | 16 | 130m6 | 200 | 137 | 32 |
400 | 780.0 | 70m6 | 105 | 74.5 | 20 | 65m6 | 105 | 69 | 18 | 150m6 | 200 | 158 | 36 |
450 | 1176.0 | 75m6 | 105 | 79.5 | 20 | 70m6 | 105 | 74.5 | 20 | 170m6 | 240 | 179 | 40 |
500 | 1440.0 | 80m6 | 130 | 85 | 22 | 70m6 | 105 | 74.5 | 20 | 180m6 | 240 | 190 | 45 |
550 | 1888.0 | 85m6 | 130 | 90 | 22 | 75m6 | 105 | 79.5 | 20 | 200m6 | 280 | 210 | 50 |
600 | 2561.0 | 90m6 | 130 | 95 | 25 | 80m6 | 130 | 85 | 22 | 220m6 | 280 | 231 | 50 |
670 | 3496.0 | 100m6 | 165 | 106 | 28 | 90m6 | 130 | 95 | 25 | 250m6 | 330 | 262 | 56 |
750 | 4832.0 | 110m6 | 165 | 116 | 28 | 100m6 | 165 | 106 | 28 | 280m6 | 380 | 292 | 63 |
840 | 7056.0 | 130m6 | 200 | 137 | 32 | 110m6 | 165 | 116 | 28 | 300m6 | 380 | 314 | 70 |
950 | 9550.0 | 150m6 | 200 | 158 | 36 | 130m6 | 200 | 137 | 32 | 350m6 | 450 | 365 | 80 |
1070 | 14880.0 | 170m6 | 240 | 179 | 40 | 150m6 | 200 | 158 | 36 | 380m6 | 450 | 395 | 80 |
