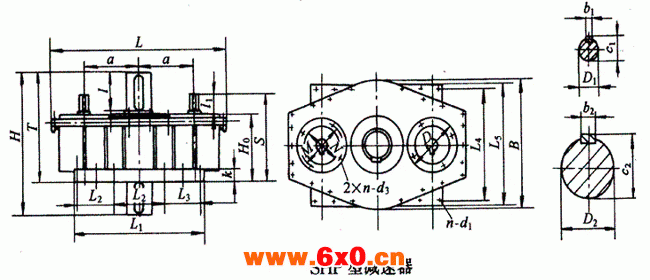

SHP型三环减速机型式与主要尺寸
SHP型减速器主要尺寸 /mm
规格 | 中心尺寸 | 轮廓尺寸 | 地脚螺栓 | |||||||||
a | H0 | L | B | H | n-d1 | k | L1 | L2 | L3 | L4 | L5 | |
125 | 125 | 230 | 410 | 250 | 357 | 8-M12 | 35 | 330 | 170 | 60 | 210 | 250 |
145 | 145 | 240 | 475 | 290 | 413 | 8-M16 | 40 | 390 | 200 | 70 | 235 | 280 |
175 | 175 | 270 | 585 | 365 | 488 | 8-M16 | 45 | 470 | 240 | 90 | 305 | 350 |
215 | 215 | 290 | 690 | 430 | 508 | 8-M20 | 50 | 560 | 280 | 110 | 350 | 400 |
255 | 255 | 340 | 810 | 500 | 607 | 8-M20 | 55 | 660 | 330 | 130 | 410 | 460 |
300 | 300 | 370 | 960 | 580 | 712 | 8-M24 | 60 | 770 | 380 | 150 | 470 | 530 |
350 | 350 | 390 | 1110 | 680 | 805 | 8-M24 | 70 | 870 | 420 | 180 | 570 | 630 |
400 | 400 | 445 | 1280 | 790 | 860 | 8-M24 | 80 | 990 | 500 | 200 | 670 | 740 |
450 | 450 | 485 | 1440 | 900 | 980 | 8-M24 | 90 | 1150 | 440 | 150 | 740 | 840 |
规格 | 法兰联接尺寸 | 高速轴伸 | 低速轴伸 | 质量m/kg | |||||||||||
D | M | N(H8) | n-d3 | D1 | l1 | S | c1 | b1 | D2 | l | T | c2 | b2 | ||
125 | 145 | 128 | 110 | 4-M8 | 18j6 | 28 | 273 | 20.5 | 6 | 38k6 | 58 | 305 | 41 | 10 | 75 |
145 | 170 | 150 | 130 | 4-M10 | 22j6 | 36 | 291 | 25 | 8 | 48k6 | 82 | 337 | 51.5 | 14 | 120 |
175 | 215 | 195 | 175 | 6-M10 | 30j6 | 58 | 343 | 33 | 8 | 60m6 | 105 | 390 | 64 | 18 | 170 |
215 | 245 | 220 | 195 | 6-M12 | 35j6 | 58 | 363 | 38 | 10 | 75m6 | 105 | 410 | 75.5 | 20 | 250 |
255 | 290 | 260 | 230 | 6-M16 | 45k6 | 82 | 437 | 48.5 | 14 | 90m6 | 130 | 485 | 95 | 25 | 370 |
300 | 340 | 305 | 270 | 8-M16 | 50k6 | 82 | 467 | 53.5 | 14 | 110m6 | 165 | 555 | 116 | 28 | 550 |
350 | 380 | 340 | 300 | 8-M20 | 55m6 | 82 | 492 | 59 | 16 | 130m6 | 200 | 615 | 139 | 32 | 830 |
400 | 430 | 390 | 340 | 8-M20 | 65m6 | 105 | 570 | 69 | 18 | 150m6 | 200 | 670 | 158 | 36 | 1330 |
450 | 450 | 400 | 350 | 8-M20 | 70m6 | 105 | 610 | 74.5 | 20 | 170m6 | 240 | 750 | 179 | 40 | 2150 |
