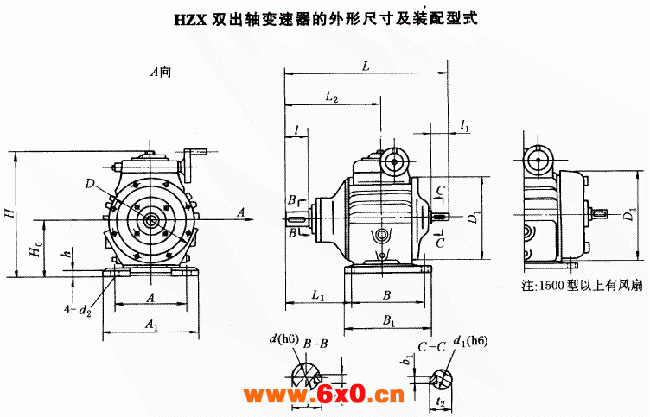

HZX环锥行星无级变速器的的外形及安裝尺寸
型号 | L | L2 | D | D1 | H | H0 | L1 | A1 | A | B1 | B | d2 | d | b | t1 | l | d1 | b1 | t2 | l1 | 重量/kg | 油量/L |
HZX90 | 144 | 98 | 104 | 100 | 146 | 65 | 34 | 110 | 90 | 90 | 70 | 13.5 | 19 | 6 | 21.5 | 28 | 10 | 3 | 11.2 | 20 | 5.6 | 0.6 |
HZX250 | 250 | 125 | 150 | 148 | 240 | 106 | 74 | 120 | 90 | 140 | 110 | 9 | 19 | 6 | 21.5 | 28 | 14 | 5 | 16 | 25 | 11 | 0.6 |
HZX370 | 282 | 152 | 169 | 166 | 240 | 106 | 74 | 150 | 120 | 185 | 155 | 9 | 19 | 6 | 21.5 | 28 | 14 | 5 | 16 | 25 | 16 | 0.6 |
HZX550 | 290 | 165 | 200 | 190 | 260 | 115 | 74 | 170 | 140 | 200 | 170 | 9 | 24 | 8 | 27 | 36 | 16 | 5 | 18 | 30 | 25 | 0.8 |
HZX750 | 351 | 198 | 210 | 190 | 265 | 120 | 74 | 170 | 140 | 200 | 170 | 9 | 24 | 8 | 27 | 36 | 20 | 6 | 22.5 | 36 | 30 | 1.0 |
HZX1500 | 445 | 220 | 254 | 258 | 324 | 154 | 104 | 200 | 160 | 270 | 230 | 11 | 32 | 10 | 35 | 58 | 24 | 8 | 27 | 36 | 48 | 1.5 |
HZX2200 | 510 | 255 | 300 | 310 | 385 | 175 | 123 | 260 | 210 | 310 | 260 | 15.5 | 32 | 10 | 35 | 58 | 24 | 8 | 27 | 36 | 79 | 2.5 |
HZX3000 | 520 | 280 | 310 | 320 | 410 | 190 | 123 | 280 | 230 | 310 | 260 | 15.5 | 35 | 10 | 38 | 58 | 25 | 8 | 28 | 42 | 90 | 2.6 |
HZX4000 | 557 | 280 | 325 | 335 | 428 | 196 | 123 | 280 | 230 | 330 | 270 | 15.5 | 42 | 12 | 45 | 82 | 28 | 8 | 31 | 42 | 150 | 2.8 |
HZX5500 | 705 | 398 | 435 | 400 | 548 | 250 | 143 | 290 | 240 | 340 | 280 | 20 | 55 | 16 | 59 | 82 | 40 | 12 | 43 | 82 | 180 | 4.0 |
HZX7500 | 785 | 398 | 435 | 410 | 548 | 250 | 143 | 365 | 300 | 490 | 425 | 20 | 55 | 16 | 59 | 82 | 48 | 14 | 51.5 | 82 | 220 | 4.5 |
注:尺寸h见表15-3-15。
