BWJ系列规格型号的外形及安装尺寸见下表。

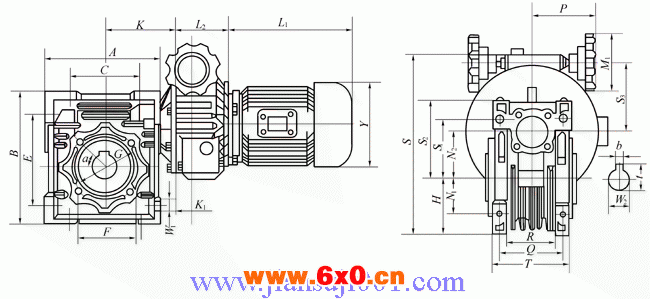

BWJ系列型号的外形及安装尺寸
型号 | B | E | F | G | A | C | W1 | a | M | K1 | K | L2 | L1 | Y | S |
BWJ40A-i-0.18K | 121.5 | 90 | φ60 | φ75 | 102 | 70 | φ7 | 45° | 4-M6 | 35 | 77 | 74 | 220 | φ140 | 234 |
BWJ50A-i-0.37/0.25K | 144 | 104 | φ70 | φ85 | 121 | 80 | φ9 | 45° | 4-M8 | 35 | 86.5 | 74 | 220 | φ140 | 220 |
BWJ63A-i-0.75/0.55K | 174 | 130 | φ80 | φ95 | 145 | 100 | φ9 | 0° | 8-M8 | 41 | 119 | 90 | 245 | φ165 | 266 |
BWJ70-i-0.75/0.55K | 200 | 145 | φ80 | φ100 | 179 | 120 | φ11 | 45° | 4-M8 | 41 | 129 | 90 | 245 | φ165 | 286 |
BWJ75A-i-1.5/1.1K | 205 | 153 | φ95 | φ115 | 172 | 120 | φ11 | 45° | 4-M8 | 72.5 | 130 | 117 | 285 | φ200 | 315 |
BWJ110A-i-4K | 294 | 210 | φ130 | φ165 | 252.5 | 170 | φ14 | 45° | 8-M10 | 88 | 160 | 145 | - | - | 428.5 |
BWJ130A-i-7.5K | 334 | 240 | φ180 | φ215 | 292.5 | 200 | φ16 | 45° | 8-M12 | 104.5 | 180 | 160 | - | - | 541.5 |
型号 | H | N1 | N2 | S1 | S2 | T | Q | R | W2 | t | b | S3 | M1 | P |
BWJ40A-i-0.18K | 50 | 34.2 | 40 | 55.8 | 71.5 | 71 | 60 | 43 | φ19 | 20.8 | 6 | 85 | φ85 | 90 |
BWJ50A-i-0.37/0.25K | 60 | 40 | 50 | 64 | 84 | 85 | 70 | 49 | φ25 | 28.3 | 8 | 85 | φ85 | 90 |
BWJ63A-i-0.75/0.55K | 72 | 50 | 63 | 80 | 102 | 103 | 85 | 67 | φ25 | 28.3 | 8 | 108 | φ85 | 120 |
BWJ70-i-0.75/0.55K | 86 | 58.5 | 70 | 86.5 | 114 | 120 | 100 | 80 | φ28 | 31.3 | 8 | 108 | φ85 | 120 |
BWJ75A-i-1.5/1.1K | 86 | 60 | 75 | 93 | 119 | 112 | 90 | 72 | φ28 | 31.3 | 8 | 127 | φ110 | 147 |
BWJ110A-i-4K | 127.5 | 85 | 110 | 125 | 167.5 | 142 | 115 | - | φ42 | 45.3 | 12 | - | φ110 | 180 |
BWJ130A-i-7.5K | 147.5 | 100 | 130 | 140 | 187.5 | 154 | 120 | - | φ45 | 48.8 | 14 | - | φ110 | 225 |
