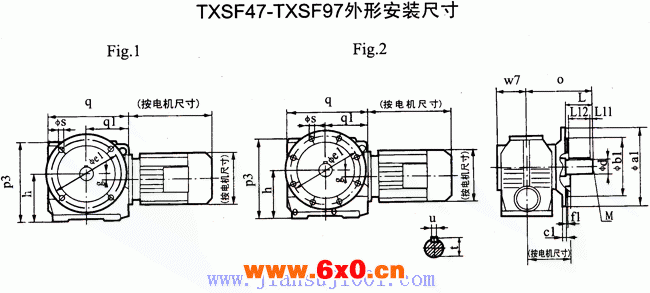

TXSF47-TXSF97斜齿轮—蜗轮减速电机外形安装尺寸
型号 | a1 | b1 | e1 | Fig | S | h | f1 | c1 | p3 | q | q1 | g | w7 | o | L | L11 | L12 | d | u | t | M |
TXSF47 | 160 | 110 | 130 | 1 | 9 | 100 | 3.5 | 10 | 179 | 171 | 96 | 8 | 57.5 | 133.5 | 50 | 5 | 40 | 25 | 8 | 28 | M10 |
TXSF57 | 200 | 1130 | 165 | 1 | 11 | 112 | 3.5 | 12 | 189 | 187 | 107 | 20 | 72 | 160 | 60 | 3.5 | 50 | 30 | 8 | 33 | M10 |
TXSF67 | 200 | 130 | 165 | 1 | 11 | 140 | 3.5 | 12 | 236 | 242 | 135 | 22 | 80.5 | 190 | 70 | 7 | 56 | 35 | 10 | 38 | M12 |
TXSF77 | 250 | 180 | 215 | 1 | 13.5 | 180 | 4 | 15 | 301 | 287 | 162 | 34 | 131 | 232 | 90 | 5 | 80 | 45 | 14 | 48.5 | M16 |
TXSF87 | 350 | 250 | 300 | 1 | 17.5 | 225 | 5 | 18 | 368 | 340 | 190 | 37.5 | 145 | 290 | 120 | 5 | 110 | 60 | 18 | 64 | M20 |
TXSF97 | 450 | 350 | 400 | 2 | 17.5 | 280 | 5 | 22 | 455 | 420 | 240 | 52 | 165 | 340 | 140 | 7.5 | 125 | 70 | 20 | 74.5 | M20 |
*电机尺寸参见附页，括号内尺寸为参考尺寸
