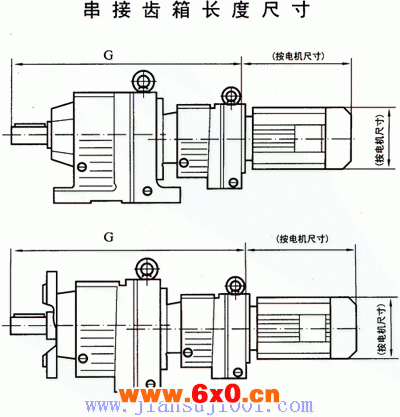

TXR系列斜齿轮减速电机串接齿箱长度尺寸
机座号 | TXR-47/37 TXRF-47/37 | TXR-57/37 TXRF-57/37 | TXR-67/37 TXRF-67/37 | TXR-77/37 TXRF-77/37 | TXR-87/57 TXRF-87/57 |
G | 405 | 426 | 450 | 472 | 575 |
机座号 | TXR-97/57 TXRF-97/57 | TXR-87/67 TXRF-87/67 | TXR-97/67 TXRF-97/67 | TXR-107/77 TXRF-107/77 | TXR-137/77 TXRF-137/77 |
G | 642 | 600 | 670 | 735 | 830 |
机座号 | TXR-147/77 TXRF-147/77 | TXR-147/87 TXRF-147/87 | TXR-167/97 TXRF-167/97 | TXR-167/107 TXRF-167/107 | - |
G | 940 | 998 | 1140 | 1175 | - |
*1、其余外形安装尺寸参见单个齿箱的相关尺寸；
2、电机尺寸参见附页，括号内尺寸为参考尺寸。
