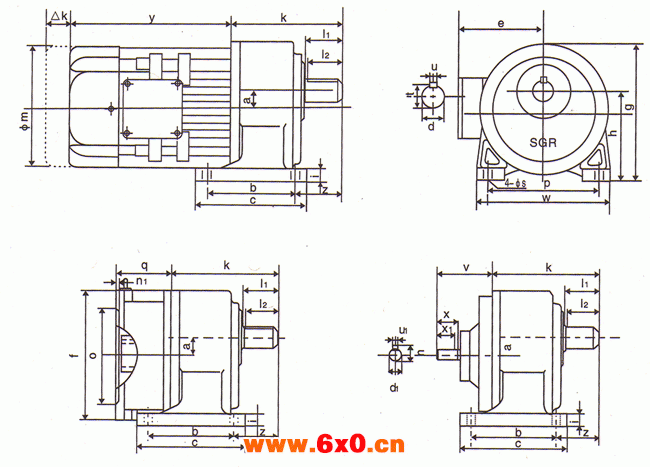

GL（HW）
| 齿轮箱型号 | 18 | 22 | 28 | 32 | 40 | 50 |
| 装配电机机座 | 63 | 63、71 | 71、80 | 80、90 | 90、100 | 100、112 |
| 重量（gk） | 7.5 | 10 | 15 | 32 | 45 | 73 |
| a | 16.5 | 18 | 22 | 27 | 32.5 | 40 |
| b | 40 | 65 | 90 | 130 | 150 | 160 |
| c | 64 | 90 | 120 | 164 | 200 | 210 |
| p | 110 | 130 | 140 | 170 | 210 | 230 |
| w | 134 | 154 | 170 | 203 | 255 | 285 |
| z | 45 | 55 | 65 | 70 | 93 | 105 |
| h | 82 | 90 | 110 | 130 | 162 | 190 |
| g | 130 | 140 | 165 | 198 | 227 | 267 |
| l1 | 30 | 40 | 45 | 55 | 65 | 75 |
| l2 | 25 | 35 | 40 | 50 | 60 | 70 |
| d(h6) | 18 | 22 | 28 | 32 | 40 | 50 |
| t | 20.5 | 24.5 | 31 | 35 | 43 | 53.5 |
| u | 6 | 6 | 8 | 10 | 12 | 14 |
| l | 10 | 12 | 16 | 18 | 20 | 25 |
| s | 9 | 11 | 11 | 13 | 18 | 18 |
| x | 25 | 25 | 30 | 30 | 35 | 50 |
| x1 | 22 | 22 | 25 | 25 | 30 | 45 |
| d1(h6) | 14 | 14 | 16 | 19 | 24 | 35 |
| t1 | 16 | 16 | 18 | 21.5 | 27 | 38 |
| u1 | 5 | 5 | 5 | 6 | 8 | 10 |
| k | 105 | 125 | 142 | 167 | 195 | 227 |
装配的电机尺寸表
| 电机机座号 | m | y | n | e | f | o | q | v | △k |
| 63 | 130 | 167 | 4 | 100 | 140 | 95 | 45 | ||
| 71 | 144 | 177 | 4.5 | 110 | 160 | 110 | 55 | ||
| 80 | 168 | 207 | 4.5 | 120 | 200 | 130 | 58.5 | ||
| 90 | 190 | 230 | 4.5 | 130 | 200 | 130 | 75 | 125 | |
| 100 | 196 | 295 | 5 | 145 | 250 | 180 | 80.5 | 125 | |
| 112 | 220 | 310 | 5 | 165 | 250 | 180 | 80.5 | 125 |
