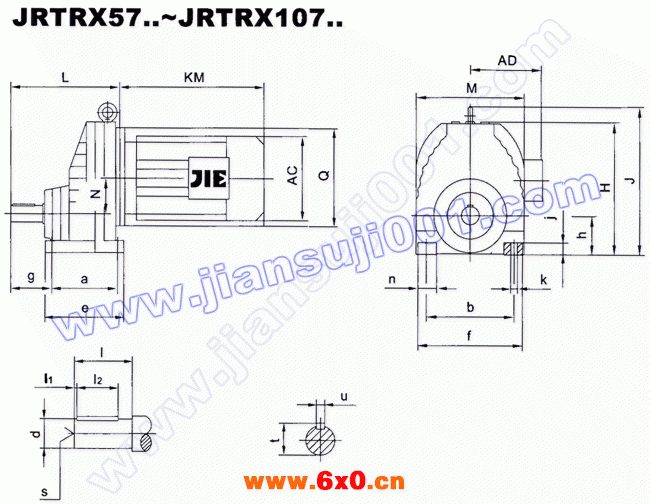

型 号 | a b | e f | g | h | j | k | n | 轴伸尺寸 | H | J | L M | N | Q | ||||
d | l | l1 l2 | s | t u | |||||||||||||
JRTRX57 | 110 125 | 137 156 | 56 | 63-0.5 | 18 | 11 | 31 | 20k6 | 40 | 3.5 32 | M6 | 22.5 6 | 202 | / | 174 162 | 52 | 160 |
JRTRX67 | 120 135 | 150 170 | 75 | 80-0.5 | 20 | 13.5 | 35 | 25k6 | 50 | 3.5 40 | M10 | 28 8 | 226 | / | 201 176 | 60 | 160 |
JRTRX77 | 150 170 | 190 204 | 85 | 90-0.5 | 25 | 17.5 | 50 | 30k6 | 60 | 3.5 50 | M10 | 33 8 | 271 | 311 | 227 210 | 72 | 200 |
JRTRX87 | 160 215 | 206 266 | 110 | 100-0.5 | 30 | 17.5 | 60 | 40k6 | 80 | 5 70 | M16 | 43 12 | 332 | 372 | 269 272 | 93.5 | 250 |
JRTRX97 | 185 250 | 240 320 | 140 | 112-0.5 | 35 | 22 | 70 | 50k6 | 100 | 10 80 | M16 | 53.5 14 | 393 | 440 | 316 328 | 116 | 300 |
JRTRX107 | 210 310 | 260 360 | 152 | 140-0.5 | 45 | 22 | 80 | 60m6 | 120 | 5 110 | M20 | 64 18 | 459 | 506 | 364 370 | 130 | 350 |
