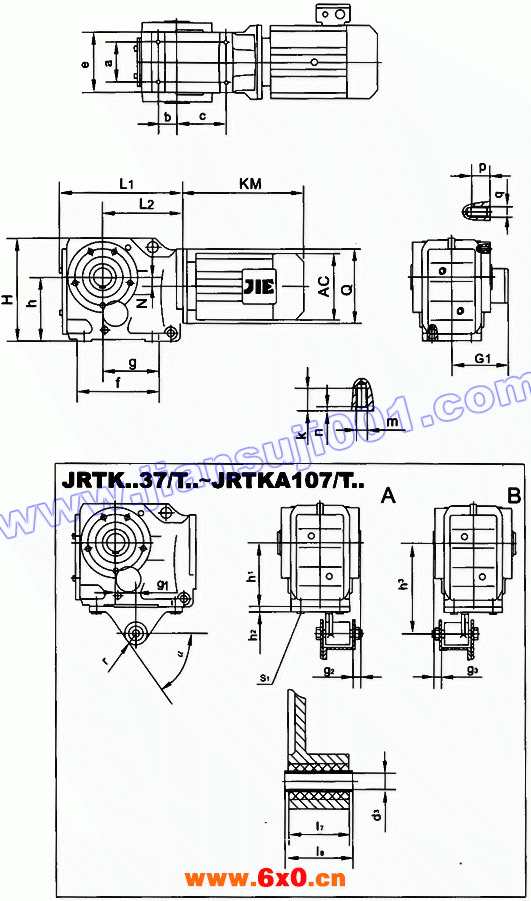

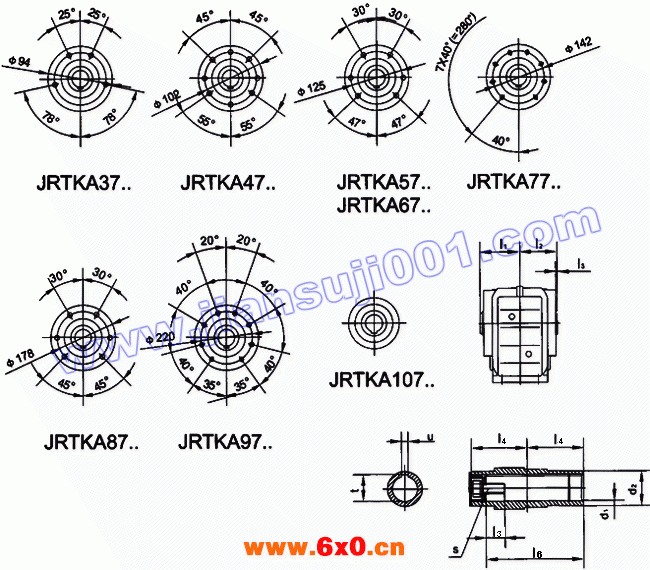

型号 | a b c | e f g | h | k m n | p q | 空心轴尺寸 | 扭矩臂尺寸 | H L1 L2 | N Q | ||||||
d1 d2 | l1 l2 l3 | l4 l5 l6 | s t u | g1 g2 g3 | h1 h2 h3 | d3 l7 l8 | r s1 o c | ||||||||
JRTKA37.. JRTK..37/T.. | 60 35 82 | 100 147 97 | 100-0.5 | 20 M10 4 | 12 M8 | 30H7 45 | 63 60 2.5 | 60 17 105 | M10 33.3 8 | 23.5 20 20 | 100-0.5 10 140+0.2-0.7 | 10.4±0.1 31 36-0.3 | 22.5 M10×25 60° | 164 210 139 | 8.5 120 |
JRTKA47.. JRTK..47/T.. | 70 40 100 | 110 170 115 | 112-0.5 | 20 M10 4 | 12 M8 | 35H7 50 | 78 75 3 | 75 22 132 | M12 38.3 10 | 30 20 20 | 112-0.5 12 160+0.2-0.7 | 10.4±0.1 31 36-0.3 | 22.5 M10×30 55° | 185 243 166 | 7.2 160 |
JRTKA57.. JRTK..57/T.. | 88 47 105 | 122 182 120 | 132-0.5 | 25 M12 5 | 20 M12 | 40H7 55 | 86 83 3 | 83 29 142 | M16 43.3 12 | 40 18 18 | 132-0.5 13 192+0.2-0.7 | 16.4±0.08 54 60-0.3 | 29 M12×35 55° | 215 269 173 | 13.1 160 |
JRTKA67.. JRTK..67/T.. | 88 42 110 | 130 182 125 | 140-0.5 | 25 M12 5 | 20 M12 | 40H7 55 | 94 90 3.5 | 90 29 156 | M16 43.3 12 | 45 25 25 | 140-0.5 13 200+0.2-0.7 | 16.4±0.08 54 60-0.3 | 29 M12×35 55° | 226 274 179 | 20 160 |
JRTKA77.. JRTK..77/T.. | 102 48 122 | 154 204 139 | 180-0.5 | 32 M16 6 | 20 M12 | 50H7 70 | 108 105 4 | 105 32 183 | M16 53.8 14 | 52.5 25 25 | 180-0.5 14 250+0.2-0.7 | 16.4±0.08 54 60-0.3 | 29 M16×45 60° | 286 312 202 | 31.3 200 |
JRTKA87.. JRTK..87/T.. | 118 65 160 | 170 280 190 | 212-0.5 | 32 M16 6 | 26 M16 | 60H7 85 | 123 120 4 | 120 36 210 | M20 64.4 18 | 60 30 30 | 212-0.5 16 300+0.2-0.7 | 25±0.08 72 80-0.3 | 41 M16×45 60° | 338 390 257 | 25.9 250 |
JRTKA..97 JRTK..97/T.. | 160 83 165 | 226 298 190 | 265-1 | 36 M20 6 | 26 M16 | 70H7 95 | 153 150 4 | 150 34 270 | M20 74.9 20 | 70 40 40 | 265-1 17 350+0.2-1.2 | 25±0.08 92 100-0.3 | 41 M20×50 50° | 414 435 277 | 32.3 300 |
JRTKA107.. JRTK..107/T.. | 190 100 190 | 266 370 230 | 315-1 | 44 M24 8 | - | 90H7 118 | 178 175 2.5 | 175 40 313 | M24 95.4 25 | 74 45 45 | 315-1 20 450+0.5-0.5 | 25±0.08 92 100-0.3 | 41 M24×60 55° | 500 537 341 | 52 350 |
