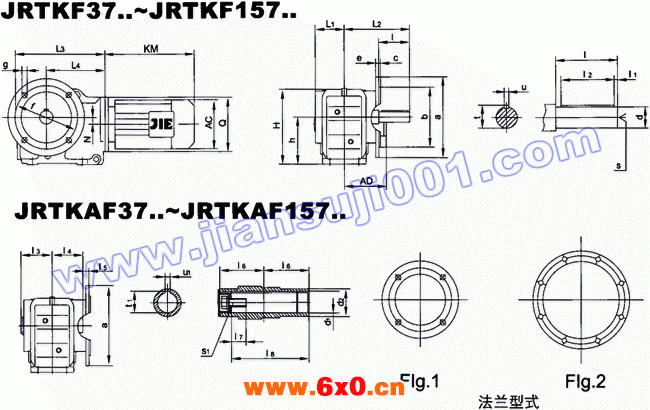

型号 | 型式 | a b | c e | f g h | 轴伸尺寸 | 空心轴尺寸 | H | L1 L2 L3 | L N Q | |||||||
d l | l1 l2 | s | t u | d1 d2 | l3 l4 l5 | l6 l7 l8 | s1 | t1 u1 | ||||||||
JRTKF37.. JRTKAF37.. | Flg.1 | 160 110j6 | 3.5 10 | 130 9 100 | 25k6 50 | 5 40 | M10 | 28 8 | 30H7 45 | 63 60 24 | 60 17 105 | M10×25 | 33.3 8 | 164 | 57.5 134 210 | 139 8.5 120 |
JRTKF47.. JRTKAF47.. | Flg.1 | 200 130j6 | 3.5 10 | 165 11 112 | 30k6 60 | 3.5 50 | M10 | 33 8 | 35H7 50 | 78 75 25 | 75 22 132 | M12×30 | 38.3 10 | 185 | 72 160 243 | 166 7.2 160 |
JRTKF57.. JRTKAF57.. | Flg.1 | 250 180j6 | 4 15 | 215 13.5 132 | 35k6 70 | 7 56 | M12 | 38 10 | 40H7 55 | 86 83 23.5 | 83 29 142 | M16×40 | 43.3 12 | 215 | 80 177 269 | 173 13.1 160 |
JRTKF67.. JRTKAF67.. | Flg.1 | 250 180j6 | 4 15 | 215 13.5 140 | 40k6 80 | 5 70 | M16 | 43 12 | 40H7 55 | 94 90 23 | 90 29 156 | M16×40 | 43.3 12 | 226 | 86.5 193 274 | 179 20 160 |
JRTKF77.. JRTKAF77.. | Flg.1 | 300 230j6 | 4 16 | 265 13.5 180 | 50k6 100 | 80 10 | M16 | 53.5 14 | 50H7 70 | 108 105 37 | 105 32 183 | M16×45 | 53.8 14 | 286 | 101 242 312 | 202 31.3 200 |
JRTKF87.. JRTKAF87.. | Flg.1 | 350 250j6 | 5 18 | 300 17.5 212 | 60m6 120 | 5 110 | M20 | 64 18 | 60H7 85 | 123 120 30 | 120 36 210 | M20×50 | 64.4 18 | 338 | 138 270 390 | 257 25.9 250 |
JRTKF97.. JRTKAF97.. | Flg.2 | 450 350h6 | 5 22 | 400 17.5 265 | 70m6 140 | 7.5 125 | M20 | 74.5 20 | 70H7 95 | 153 150 41.5 | 150 34 270 | M20×50 | 74.9 20 | 414 | 171 332 435 | 277 32.3 300 |
JRTKF107.. JRTKAF107.. | Flg.2 | 450 350h6 | 5 25 | 400 17.5 315 | 90m6 170 | 5 160 | M24 | 95 25 | 90H7 118 | 179 175 41 | 175 40 313 | M24×60 | 95.4 25 | 500 | 175 386 537 | 341 52 350 |
JRTKF127.. JRTKAF127.. | Flg.2 | 550 450h6 | 5 22 | 500 17.5 375-1 | 110m6 210 | 15 180 | M24 | 116 28 | 100H7 135 | 208 205 51 | 205 38 373 | M24×60 | 106.4 28 | 592 | 203 466 615 | 390 53 450 |
JRTKF157.. JRTKAF157.. | Flg.2 | 660 550h6 | 6 28 | 600 22 450-1 | 120m6 210 | 5 200 | M24 | 127 32 | 120H7 155 | 253 250 60 | 250 36 460 | M24×60 | 127.4 32 | 705 | 253 520 706 | 705 71.7 550 |
