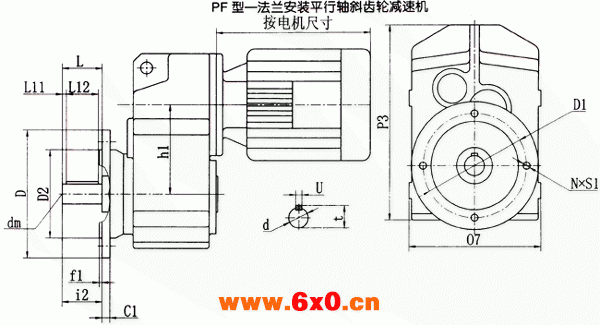

PF……法兰安装平行轴斜齿轮减速机安装尺寸
机型号 | D | h1 | D2 | C1 | D1 | f1 | i2 | N | S1 | d | L | L11 | L12 | 07 P3 | t | dm |
PF37 | 160 | 112 | 110h7 | 10 | 130 | 3.5 | 50 | 4 | 9 | 25k6 | 177 | 5 | 40 | 165 252 | 28 | M8 |
PF47 | 200 | 128.1 | 130h7 | 12 | 165 | 3.5 | 60 | 4 | 11 | 30k6 | 211 | 3.5 | 50 | 180 269 | 33 | M8 |
PF67 | 250 | 159.5 | 180h7 | 15 | 215 | 4 | 80 | 4 | 13.5 | 40k6 | 264 | 5 | 70 | 212 343 | 43 | M10 |
PF77 | 300 | 200 | 230h7 | 16 | 265 | 4 | 100 | 4 | 13.5 | 50k6 | 325 | 10 | 80 | 270 426 | 53.5 | M12 |
PF87 | 350 | 246.7 | 250h7 | 18 | 300 | 5 | 120 | 4 | 17.5 | 60m6 | 375 | 5 | 110 | 330 531 | 64 | M12 |
PF97 | 450 | 285 | 350h7 | 22 | 400 | 5 | 140 | 8 | 17.5 | 70m6 | 458 | 7.5 | 125 | 400 623 | 74.5 | M12 |
PF107 | 450 | 332.4 | 350h7 | 22 | 400 | 5 | 170 | 8 | 17.5 | 90m6 | 525 | 5 | 160 | 450 717 | 95 | M16 |
PF127 | 550 | 382.6 | 450h7 | 25 | 500 | 5 | 210 | 8 | 17.5 | 110m6 | 635 | 15 | 180 | 530 856 | 116 | M20 |
