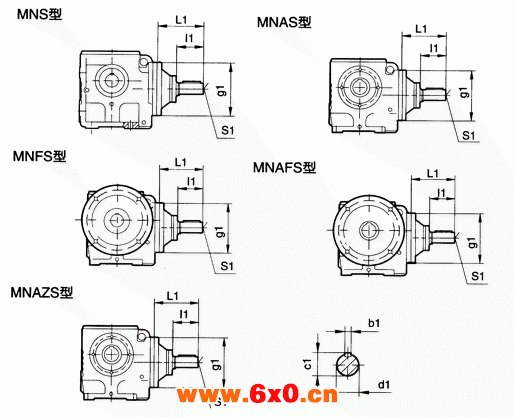

MN..S型圆柱蜗杆减速机的安装尺寸
型号 | d1 | L1 | l1 | S1 | b1 | c1 | g1 |
MN..S37 | 16k6 | 115 | 40 | M5 | 18 | 5 | 120 |
MN..S47 | 19k6 | 120 | 40 | M6 | 21.5 | 6 | 160 |
MN..S57 | 19k6 | 120 | 40 | M6 | 21.5 | 6 | 160 |
MN..S67 | 19k6 | 120 | 40 | M6 | 21.5 | 6 | 160 |
MN..S77 | 24k6 | 140 | 50 | M8 | 27 | 8 | 200 |
MN..S87 | 28k6 | 180 | 60 | M10 | 31 | 8 | 250 |
MN..S97 | 38k6 | 220 | 80 | M12 | 41 | 10 | 300 |
注：其他尺寸请参见MN系列
