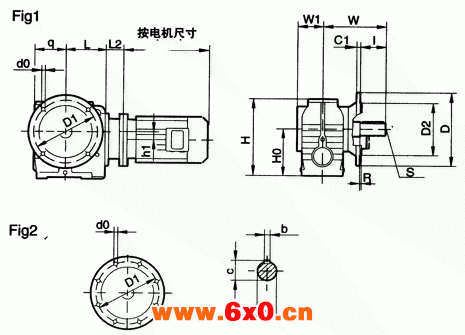

MNF系列圆柱蜗杆减速机的安装尺寸
型号 | 安装尺寸 | 轴伸尺寸 | 外形尺寸 | |||||||||||||||||
H0 | D1 | Fig | do | D2 | R | d | l | b | c | S | L | C1 | D | q | W1 | W | h1 | H | L2 | |
MNF37 | 82 | 100 | 1 | 6. 6 | 80j6 | 3 | 20k6 | 40 | 6 | 22.5 | M6 | 80 | 8 | 120 | 63 | 57 | 115 | 4.1 | 131 | 电机尺寸 |
130 | 9 | 110j6 | 3.5 | 10 | 160 | |||||||||||||||
MNF47 | 100 | 130 | 1 | 9 | 110j6 | 3.5 | 25k6 | 50 | 8 | 28 | M10 | 96 | 10 | 160 | 75 | 57.5 | 133.5 | 9.0 | 179 | |
MNF57 | 112 | 165 | 1 | 11 | 130j6 | 3.5 | 30k6 | 60 | 8 | 33 | M10 | 107 | 12 | 200 | 80 | 72 | 160 | 21.0 | 189 | |
MNF67 | 140 | 165 | 1 | 11 | 130j6 | 3.5 | 35k6 | 70 | 10 | 38 | M12 | 143 | 12 | 200 | 107 | 80.5 | 190 | 26.3 | 238 | |
MNF77 | 180 | 215 | 1 | 13.5 | 180j6 | 4 | 45k6 | 90 | 14 | 48.5 | M16 | 162 | 15 | 250 | 125 | 121 | 232 | 40.4 | 301 | |
MNF87 | 225 | 300 | 1 | 17.5 | 250h6 | 5 | 60m6 | 120 | 18 | 64 | M20 | 190 | 18 | 350 | 150 | 145 | 290 | 39.6 | 368 | |
MNF97 | 280 | 400 | 2 | 17.5 | 350h6 | 5 | 70m6 | 140 | 20 | 74.5 | M20 | 240 | 22 | 450 | 180 | 165 | 340 | 59.1 | 455 | |
