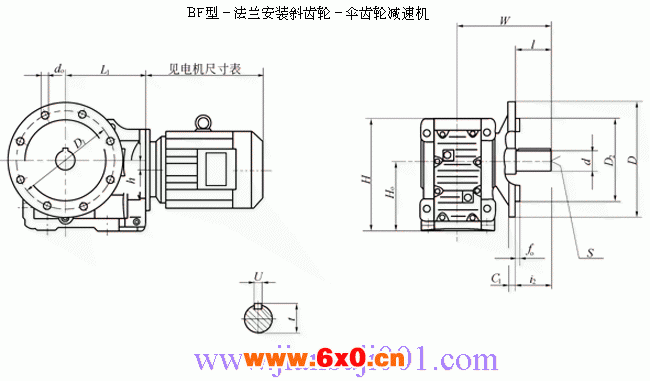

BAF机型安装结构尺寸
机型号 | D | C1 | D1 | f0 | i2 | w | t | d0 | L2 | u | D2 | d | M |
BAF37 | 160 | 10 | 130 | 3.5 | 24 | 60 | 33.3 | 4-φ9 | 105 | 8 | 110h7 | 30H7 | 用 户 自 配 |
BAF47 | 200 | 12 | 165 | 3.5 | 25 | 75 | 38.3 | 4-φ9 | 132 | 10 | 130h7 | 35H7 | |
BAF67 | 250 | 15 | 215 | 4 | 23 | 90 | 43.3 | 4-φ13.5 | 156 | 12 | 180h7 | 40H7 | |
BAF77 | 300 | 16 | 265 | 4 | 37 | 105 | 53.8 | 4-φ13.5 | 183 | 14 | 230h7 | 50H7 | |
BAF87 | 350 | 18 | 300 | 5 | 30 | 120 | 64.4 | 4-φ18 | 210 | 18 | 250h7 | 60H7 | |
BAF97 | 450 | 22 | 400 | 5 | 41.5 | 150 | 74.9 | 8-φ18 | 270 | 20 | 350h7 | 70H7 | |
BAF107 | 450 | 22 | 400 | 5 | 41 | 175 | 95.4 | 8-φ18 | 313 | 25 | 350h7 | 90H7 | |
BAF127 | 550 | 25 | 500 | 5 | 51 | 205 | 106.4 | 8-φ18 | 373 | 28 | 450h7 | 100H7 | |
BAF157 | 660 | 28 | 600 | 6 | 60 | 250 | 127.4 | 8-φ22 | 460 | 32 | 550h7 | 120H7 |
注：其它尺寸 其中BAF37—BAF107参见BA型BAF127—BAF157参见B型
