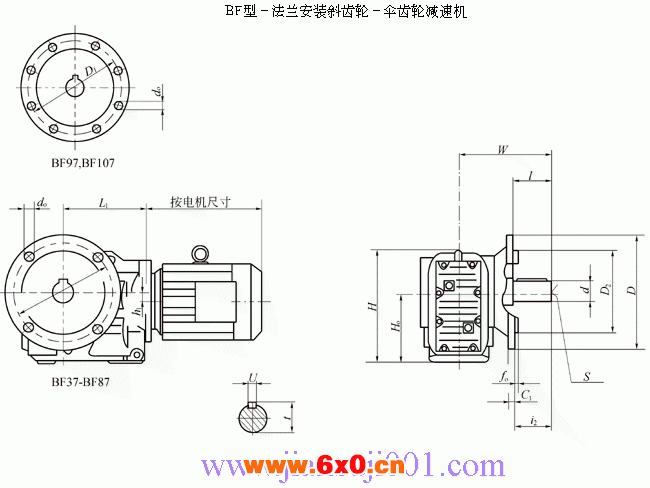

F37—107机型安装尺寸
机型号 | D | C1 | H | D1 | fo | Ho | i2 | W | L1 | S | t | do | l | U | h1 | D2 | d |
BF37 | 160 | 10 | 165 | 130 | 3.5 | 100 | 50 | 134 | 172 | M10 | 28 | 4-φ9 | 50 | 8 | 8.5 | 110h7 | 25k6 |
BF47 | 200 | 12 | 185 | 165 | 3.5 | 112 | 60 | 160 | 206 | M10 | 33 | 4-φ9 | 60 | 8 | 7.2 | 130h7 | 30k6 |
BF67 | 250 | 15 | 226 | 215 | 4 | 140 | 80 | 193 | 225 | M16 | 43 | 4-φ13.5 | 80 | 12 | 20 | 180h7 | 40k6 |
BF77 | 300 | 16 | 286 | 265 | 4 | 180 | 100 | 242 | 255 | M16 | 53.5 | 4-φ13.5 | 100 | 14 | 31.3 | 230h7 | 50k6 |
BF87 | 350 | 18 | 338 | 300 | 5 | 212 | 120 | 270 | 317 | M20 | 64 | 4-φ18 | 120 | 18 | 25.9 | 250h7 | 60m6 |
BF97 | 450 | 22 | 414 | 400 | 5 | 265 | 140 | 332 | 347 | M20 | 74.5 | 4-φ18 | 140 | 20 | 32.3 | 350h7 | 70m6 |
BF107 | 450 | 22 | 505 | 400 | 5 | 315 | 170 | 386 | 430 | M24 | 95 | 4-φ18 | 170 | 25 | 52 | 350h7 | 90m6 |
注：其它尺寸，请参见BA型
