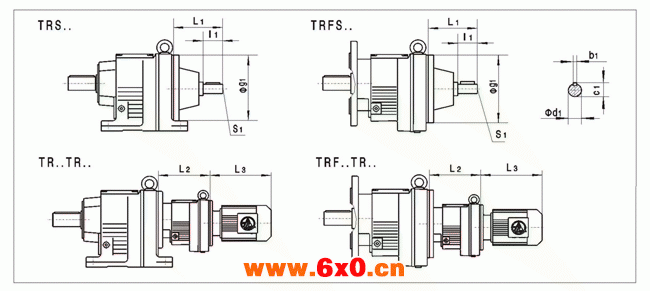

TR系列斜齿轮硬齿面减速机的安装尺寸
型号 | d1 | L1 | I1 | S1 | C1 | b1 | g1 |
TR..S28 TR..S38 | 16k6 | 115 | 40 | M5 | 18 | 5 | 120 |
TR..S48 TR..S58 TR..S68 | 19k6 | 120 | 40 | M6 | 21.5 | 6 | 160 |
TR..S78 | 24k6 | 140 | 50 | M8 | 27 | 8 | 200 |
TR..S88 | 28k6 | 180 | 60 | M10 | 31 | 8 | 250 |
TR..S98 | 38k6 | 220 | 80 | M12 | 41 | 10 | 300 |
TR..S108 | 42k6 | 270 | 110 | M16 | 45 | 12 | 350 |
TR..S138 | 55m6 | 307 | 110 | M20 | 59 | 16 | 400 |
TR..S148 | 55m6 | 297 | 110 | M20 | 59 | 16 | 450 |
TR..S168 | 70m6 | 374 | 140 | M20 | 74.5 | 20 | 550 |
型号 | 电机机座号 | L2 | L3 | 型号 | 电机机座号 | L2 | L3 | |
TR..28TR18 TR..38TR18 | Y263.. | 175 | ≤208 | TR..148TR88 | Y290.. | 272 | ≤295 | |
Y271.. | 175 | ≤266 | Y2100L | 272 | ≤320 | |||
Y280.. | 175 | ≤272 | Y2112M | 272 | ≤340 | |||
TR..48TR38 TR..58TR38 TR..68TR38 TR..78TR38 | Y263.. | 157 | ≤208 | Y2132. | 272 | ≤465 | ||
Y271.. | 157 | ≤266 | Y2160.. | 272 | ≤600 | |||
Y2180.. | 272 | ≤665 | ||||||
Y280.. | 157 | ≤272 | TR..168TR98 | Y280.. | 320 | ≤348 | ||
Y290.. | 157 | ≤320 | Y290.. | 320 | ≤395 | |||
TR..88TR58 TR..98TR58 | Y263.. | 187 | ≤198 | Y2100L | 320 | ≤320 | ||
Y271.. | 187 | ≤266 | Y2112M | 320 | ≤340 | |||
Y280.. | 187 | ≤272 | Y2132,, | 320 | ≤425 | |||
Y290M | 187 | ≤320 | Y2160.. | 320 | ≤600 | |||
Y2100L | 187 | ≤350 | Y2180.. | 320 | ≤665 | |||
Y2112M | 187 | ≤375 | TR..168TR108 | Y2100L | 355 | ≤320 | ||
TR..108TR78 TR..138TR78 TR..148TR78 | Y263.. | 220 | ≤198 | Y2112M | 355 | ≤340 | ||
Y271.. | 220 | ≤266 | Y2132.. | 355 | ≤425 | |||
Y280.. | 220 | ≤248 | Y2160.. | 355 | ≤560 | |||
Y290.. | 220 | ≤295 | Y2180.. | 355 | ≤620 | |||
Y2100L | 220 | ≤350 | Y2200L | 355 | ≤675 | |||
Y2112M | 220 | ≤375 | Y2225.. | 355 | ≤740 | |||
Y2132.. | 220 | ≤465 | ||||||
Y2160M | 220 | ≤600 |
注：其余参数参见TR…、TRF…
