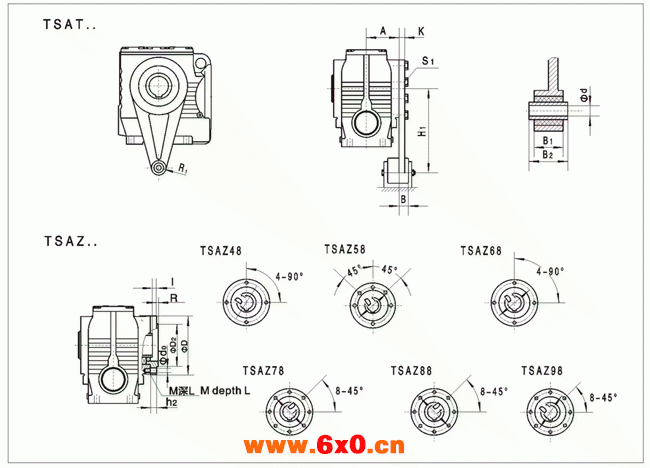

TSAT38……系列蜗轮蜗杆减速机外形安装尺寸
型号 | 安装尺寸 | 外形尺寸 | |||||||
H1 | S1 | d | B | B1 | B2 | K | R1 | A | |
TSAT38 | 110 | M6×16 | 10.4±0.1 | 26 | 31 | 36-0.3 | 10 | 21 | 57 |
TSAT48 | 130 | M8×25 | 10.4±0.1 | 20.5 | 31 | 36-0.3 | 15 | 21 | 57.5 |
TSAT58 | 160 | M8×25 | 10.4±0.1 | 18.5 | 31 | 36-0.3 | 15 | 21 | 72 |
TSAT68 | 200 | M12×35 | 10.4±0.1 | 19.5 | 31 | 36-0.3 | 18 | 21 | 80.5 |
TSAT78 | 250 | M12×35 | 16.4±0.08 | 32.5 | 54 | 60-0.3 | 18 | 30 | 101 |
TSAT88 | 310 | M16×45 | 16.4±0.08 | 25.5 | 54 | 60-0.3 | 24 | 30 | 120 |
TSAT98 | 380 | M16×50 | 25±0.08 | 33 | 72 | 80-0.3 | 26 | 40 | 140 |
型号 | 安装尺寸 | 轴伸尺寸 | 外形尺寸 | ||||||
L | D1 | D2 | M | R | l | d0 | h2 | D | |
TSAZ48 | 12 | Ф115 | 95j6 | M8 | 3 | 8.5 | 9 | 11 | 130 |
TSAZ58 | 12 | Ф102 | 80j6 | M8 | 3 | 8 | 9 | 11 | 120 |
TSAZ68 | 20 | Ф130 | 105j6 | M12 | 3.5 | 9.5 | 13.5 | 13 | 155 |
TSAZ78 | - | Ф155 | 125j6 | - | 4 | 14.5 | M12 | 18.5 | 180 |
TSAZ88 | - | Ф180 | 150j6 | - | 5 | 18.5 | M16 | 23.5 | 215 |
TSAZ98 | - | Ф220 | 180j6 | - | 5 | 18.5 | M16 | 23.5 | 260 |
注：其余尺寸请见TSA..
