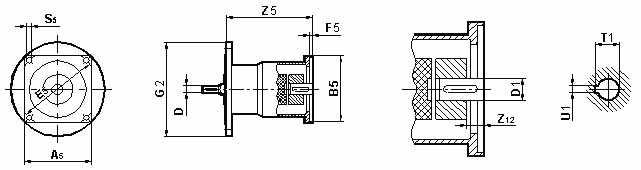

AQA
AQH
减速机 型号 | 接盘型号 | A5 | B5 | D | E5 | F5 | G2 | S5 | Z5 | Z121) | Z122) | D1 | L1 | T11) | U11) |
JF..27 JF..37 JF..47 | AQ..80/1 | 82 | 60 | 10 12 | 75 | 3 | 120 | M5 | 104.5 | 5.5 | 5.5 | 11 | 23 | 12.8 | 4 |
AQ..80/2 | 82 | 60 | 75 | 3 | 120 | M5 | 104.5 | 5.5 | 5.5 | 14 | 30 | 16.3 | 5 | ||
AQ..80/3 | 82 | 50 | 95 | 3 | 120 | M6 | 104.5 | 5.5 | 5.5 | 14 | 30 | 16.3 | 5 | ||
AQ..100/1 | 100 | 80 | 10 12 14 16 | 100 | 4 | 120 | M6 | 129.5 | - | - | 14 | 30 | 16.3 | 5 | |
AQ..100/2 | 100 | 95 | 115 | 4 | 120 | M8 | 129.5 | - | - | 14 | 30 | 16.3 | 5 | ||
AQ..100/3 | 100 | 80 | 100 | 4 | 120 | M6 | 143.5 | 7 | 14 | 19 | 40 | 21.8 | 6 | ||
AQ..100/4 | 100 | 95 | 115 | 4 | 120 | M8 | 143.5 | 7 | 14 | 19 | 40 | 21.8 | 6 | ||
AQ..115/1 | 115 | 95 | 130 | 4 | 120 | M8 | 152.5 | 16 | 23 | 19 | 40 | 21.8 | 6 | ||
AQ..115/2 | 115 | 110 | 130 | 4 | 120 | M8 | 152.5 | 16 | 23 | 19 | 40 | 21.8 | 6 | ||
AQ..115/3 | 115 | 110 | 130 | 4 | 120 | M8 | 152.5 | 21 | 16 | 24 | 50 | 27.3 | 8 | ||
JF..57 JF..67 | AQ..80/1 | 82 | 60 | 10 12 | 75 | 3 | 160 | M5 | 98 | 5.5 | 5.5 | 11 | 23 | 12.8 | 4 |
AQ..80/2 | 82 | 60 | 75 | 3 | 160 | M5 | 98 | 5.5 | 5.5 | 14 | 30 | 16.3 | 5 | ||
AQ..80/3 | 82 | 50 | 95 | 3 | 160 | M6 | 98 | 5.5 | 5.5 | 14 | 30 | 16.3 | 5 | ||
AQ..100/1 | 100 | 80 | 10 12 14 16 | 100 | 4 | 160 | M6 | 122.5 | - | - | 14 | 30 | 16.3 | 5 | |
AQ..100/2 | 100 | 95 | 115 | 4 | 160 | M8 | 122.5 | - | - | 14 | 30 | 16.3 | 5 | ||
AQ..100/3 | 100 | 80 | 100 | 4 | 160 | M6 | 136.5 | 7 | 14 | 19 | 40 | 21.8 | 6 | ||
AQ..100/4 | 100 | 95 | 115 | 4 | 160 | M8 | 136.5 | 7 | 14 | 19 | 40 | 21.8 | 6 | ||
AQ..115/1 | 115 | 95 | 130 | 4 | 160 | M8 | 145.5 | 16 | 23 | 19 | 40 | 21.8 | 6 | ||
AQ..115/2 | 115 | 110 | 130 | 4 | 160 | M8 | 145.5 | 16 | 23 | 19 | 40 | 21.8 | 6 | ||
AQ..115/3 | 115 | 110 | 130 | 4 | 160 | M8 | 145.5 | 21 | 16 | 24 | 50 | 27.3 | 8 | ||
AQ..140/1 | 140 | 110 | 16 | 165 | 5 | 160 | M10 | 175 | 21 | 16 | 24 | 50 | 27.3 | 8 | |
AQ..140/2 | 140 | 130 | 18 | 165 | 5 | 160 | M10 | 175 | 21 | 16 | 24 | 50 | 27.3 | 8 | |
AQ..140/3 | 140 | 130 | 22 | 165 | 5 | 160 | M10 | 188 | 24 | 22 | 32 | 60 | 35.3 | 10 |
1) 带平键型(AQA)
2) 带锁紧套型(AQH)
减速机 型号 | 接盘型号 | A5 | B5 | D | E5 | F5 | G2 | S5 | Z5 | Z121) | Z122) | D1 | L1 | T11) | U11) |
JF..77 | AQ..80/1 | 82 | 60 | 10 12 | 75 | 3 | 200 | M5 | 92 | 5.5 | 5.5 | 11 | 23 | 12.8 | 4 |
AQ..80/2 | 82 | 60 | 75 | 3 | 200 | M5 | 92 | 5.5 | 5.5 | 14 | 30 | 16.3 | 5 | ||
AQ..80/3 | 82 | 50 | 95 | 3 | 200 | M6 | 92 | 5.5 | 5.5 | 14 | 30 | 16.3 | 5 | ||
AQ..100/1 | 100 | 80 | 10 12 14 16 | 100 | 4 | 200 | M6 | 115.5 | - | - | 14 | 30 | 16.3 | 5 | |
AQ..100/2 | 100 | 95 | 115 | 4 | 200 | M8 | 115.5 | - | - | 14 | 30 | 16.3 | 5 | ||
AQ..100/3 | 100 | 80 | 100 | 4 | 200 | M6 | 129.5 | 7 | 14 | 19 | 40 | 21.8 | 6 | ||
AQ..100/4 | 100 | 95 | 115 | 4 | 200 | M8 | 129.5 | 7 | 14 | 19 | 40 | 21.8 | 6 | ||
AQ..115/1 | 115 | 95 | 130 | 4 | 200 | M8 | 138.5 | 16 | 23 | 19 | 40 | 21.8 | 6 | ||
AQ..115/2 | 115 | 110 | 130 | 4 | 200 | M8 | 138.5 | 16 | 23 | 19 | 40 | 21.8 | 6 | ||
AQ..115/3 | 115 | 110 | 130 | 4 | 200 | M8 | 138.5 | 21 | 16 | 24 | 50 | 27.3 | 8 | ||
AQ..140/1 | 140 | 110 | 16 | 165 | 5 | 200 | M10 | 167 | 21 | 16 | 24 | 50 | 27.3 | 8 | |
AQ..140/2 | 140 | 130 | 18 | 165 | 5 | 200 | M10 | 167 | 21 | 16 | 24 | 50 | 27.3 | 8 | |
AQ..140/3 | 140 | 130 | 22 | 165 | 5 | 200 | M10 | 180 | 24 | 22 | 32 | 60 | 35.3 | 10 | |
AQ..190/1 | 190 | 130 | 22 28 | 215 | 5 | 200 | M12 | 225.5 | 26 | 24 | 32 | 60 | 35.3 | 10 | |
AQ..190/2 | 190 | 180 | 215 | 5 | 200 | M12 | 225.5 | 26 | 24 | 32 | 60 | 35.3 | 10 | ||
AQ..190/3 | 190 | 180 | 215 | 5 | 200 | M12 | 249.5 | 39 | 34 | 38 | 80 | 41.3 | 10 | ||
JF..87 | AQ..100/1 | 100 | 80 | 10 12 14 16 | 100 | 4 | 250 | M6 | 110.5 | - | - | 14 | 30 | 16.3 | 5 |
AQ..100/2 | 100 | 95 | 115 | 4 | 250 | M8 | 110.5 | - | - | 14 | 30 | 16.3 | 5 | ||
AQ..100/3 | 100 | 80 | 100 | 4 | 250 | M6 | 124.5 | 7 | 14 | 19 | 40 | 21.8 | 6 | ||
AQ..100/4 | 100 | 95 | 115 | 4 | 250 | M8 | 124.5 | 7 | 14 | 19 | 40 | 21.8 | 6 | ||
AQ..115/1 | 115 | 95 | 130 | 4 | 250 | M8 | 133.5 | 16 | 23 | 19 | 40 | 21.8 | 6 | ||
AQ..115/2 | 115 | 110 | 130 | 4 | 250 | M8 | 133.5 | 16 | 23 | 19 | 40 | 21.8 | 6 | ||
AQ..115/3 | 115 | 110 | 130 | 4 | 250 | M8 | 133.5 | 21 | 16 | 24 | 50 | 27.3 | 8 | ||
AQ..140/1 | 140 | 110 | 16 | 165 | 5 | 250 | M10 | 162 | 21 | 16 | 24 | 50 | 27.3 | 8 | |
AQ..140/2 | 140 | 130 | 18 | 165 | 5 | 250 | M10 | 162 | 21 | 16 | 24 | 50 | 27.3 | 8 | |
AQ..140/3 | 140 | 130 | 22 | 165 | 5 | 250 | M10 | 175 | 24 | 22 | 32 | 60 | 35.3 | 10 | |
AQ..190/1 | 190 | 130 | 22 28 | 215 | 5 | 250 | M12 | 220.5 | 26 | 24 | 32 | 60 | 35.3 | 10 | |
AQ..190/2 | 190 | 180 | 215 | 5 | 250 | M12 | 220.5 | 26 | 24 | 32 | 60 | 35.3 | 10 | ||
AQ..190/3 | 190 | 180 | 215 | 5 | 250 | M12 | 244.5 | 39 | 34 | 38 | 80 | 41.3 | 10 |
1) 带平键型(AQA)
2) 带锁紧套型(AQH)
减速机 型号 | 接盘型号 | A5 | B5 | D | E5 | F5 | G2 | S5 | Z5 | Z121) | Z122) | D1 | L1 | T11) | U11) |
JF..97 | AQ..140/1 | 140 | 110 | 16 | 165 | 5 | 300 | M10 | 157 | 21 | 16 | 24 | 50 | 27.3 | 8 |
AQ..140/2 | 140 | 130 | 18 | 165 | 5 | 300 | M10 | 157 | 21 | 16 | 24 | 50 | 27.3 | 8 | |
AQ..140/3 | 140 | 130 | 22 | 165 | 5 | 300 | M10 | 170 | 24 | 22 | 32 | 60 | 35.3 | 10 | |
AQ..190/1 | 190 | 130 | 22 28 | 215 | 5 | 300 | M12 | 215.5 | 26 | 24 | 32 | 60 | 35.3 | 10 | |
AQ..190/2 | 190 | 180 | 215 | 5 | 300 | M12 | 215.5 | 26 | 24 | 32 | 60 | 35.3 | 10 | ||
AQ..190/3 | 190 | 180 | 215 | 5 | 300 | M12 | 239.5 | 39 | 34 | 38 | 80 | 41.3 | 10 | ||
JF..107 | AQ..140/1 | 140 | 110 | 16 | 165 | 5 | 350 | M10 | 151 | 21 | 16 | 24 | 50 | 27.3 | 8 |
AQ..140/2 | 140 | 130 | 18 | 165 | 5 | 350 | M10 | 151 | 21 | 16 | 24 | 50 | 27.3 | 8 | |
AQ..140/3 | 140 | 130 | 22 | 165 | 5 | 350 | M10 | 164 | 24 | 22 | 32 | 60 | 35.3 | 10 | |
AQ..190/1 | 190 | 130 | 22 28 | 215 | 5 | 350 | M12 | 209.5 | 26 | 24 | 32 | 60 | 35.3 | 10 | |
AQ..190/2 | 190 | 180 | 215 | 5 | 350 | M12 | 209.5 | 26 | 24 | 32 | 60 | 35.3 | 10 | ||
AQ..190/3 | 190 | 180 | 215 | 5 | 350 | M12 | 233.5 | 39 | 34 | 38 | 80 | 41.3 | 10 | ||
JF..127 | AQ..190/1 | 190 | 130 | 22 28 | 215 | 5 | 450 | M12 | 194.5 | 26 | 24 | 32 | 60 | 35.3 | 10 |
AQ..190/2 | 190 | 180 | 215 | 5 | 450 | M12 | 194.5 | 26 | 24 | 32 | 60 | 35.3 | 10 | ||
AQ..190/3 | 190 | 180 | 215 | 5 | 450 | M12 | 218.5 | 39 | 34 | 38 | 80 | 41.3 | 10 |
1) 带平键型(AQA)
2) 带锁紧套型(AQH)
