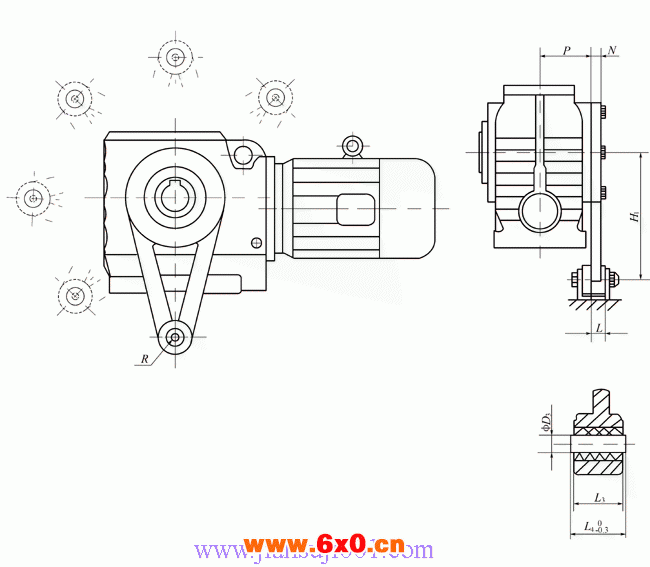

JTS..37-97/T..外形安装尺寸

型号 | P | N | H1 | R | L | L3 | L4 | øD |
JTS.37/T | 57 | 10 | 110 | 21 | 26 | 31 | 360-0.3 | 10.4±0.1 |
JTS.47/T | 57.5 | 15 | 130 | 21 | 20.5 | 31 | 360-0.3 | 10.4±0.1 |
JTS.57/T | 72 | 15 | 160 | 21 | 18.5 | 31 | 360-0.3 | 10.4±0.1 |
JTS.67/T | 80.5 | 18 | 200 | 21 | 19.5 | 31 | 360-0.3 | 10.4±0.1 |
JTS.77/T | 101 | 18 | 250 | 30 | 32.5 | 54 | 600-0.3 | 16.4±0.08 |
JTS.87/T | 120 | 24 | 310 | 30 | 25.5 | 54 | 600-0.3 | 16.4±0.08 |
JTS.97/T | 140 | 26 | 380 | 40 | 33 | 72 | 800-0.3 | 25±0.08 |
