JP系列行星减速器输端螺纹孔、平键各键槽
轴端螺纹孔 mm | |||||||||||
轴径Φd | ≥16-21 | >21-24 | >24-30 | >30-38 | >38-50 | >50-85 | >85-130 | >130-225 | >225-320 | >320-500 | >500-700 |
螺孔尺寸 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 |

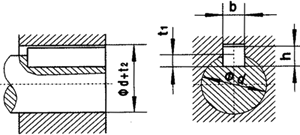

平键和键槽 mm | |||||
平键紧固采用无锥度联接 平键和键槽根据GB/T1095-1979标准确定  | 直径 d | 宽度 b | 高度 h | 轴键槽深度 t1 | 轮毂键槽深度 d+t2 |
>8-10 | 3 | 3 | 1.8 | d+1.4 | |
>10-12 | 4 | 4 | 2.5 | d+1.8 | |
>12-17 | 5 | 5 | 3 | d+2.3 | |
>17-22 | 6 | 6 | 3.5 | d+2.8 | |
>22-30 | 8 | 7 | 4 | d+3.3 | |
>30-38 | 10 | 8 | 5 | d+3.3 | |
>38-44 | 12 | 8 | 5 | d+3.3 | |
>44-50 | 14 | 9 | 5.5 | d+3.8 | |
>50-58 | 16 | 10 | 6 | d+4.3 | |
>58-65 | 18 | 11 | 7 | d+4.4 | |
>65-75 | 20 | 12 | 7.5 | d+4.9 | |
>75-85 | 22 | 14 | 9 | d+5.4 | |
>85-95 | 25 | 14 | 9 | d+5.4 | |
>95-110 | 28 | 16 | 10 | d+6.4 | |
>110-130 | 32 | 18 | 11 | d+7.4 | |
>130-150 | 36 | 20 | 12 | d+8.4 | |
>150-170 | 40 | 22 | 13 | d+9.4 | |
>170-200 | 45 | 25 | 15 | d+10.4 | |
>200-230 | 50 | 28 | 17 | d+11.4 | |
>230-260 | 56 | 32 | 20 | d+12.4 | |
>260-290 | 63 | 32 | 20 | d+12.4 | |
>290-330 | 70 | 36 | 22 | d+14.4 | |
>330-380 | 80 | 40 | 25 | d+15.4 | |
>380-440 | 90 | 45 | 28 | d+17.4 | |
>440-500 | 100 | 50 | 31 | d+19.5 | |
