无段变速机系列的负载表
1000RPM~165RPM（6:1） 1200RPM~200RPM（6:1）
TYPE | RATIO RANGE | Allowable Output torque (kgw)at input rpm | aPProx Welght kg | |
UP to 1500 | 1500~1800 | |||
D002A(4M) | 1/1.4~1/8.4 | 0.15~0.3 | 0.13~0.25 | 5(13) |
D002F(4M) | 6(14) | |||
D004A(4M) | 0.3~0.6 | 0.25~0.5 | 12(24) | |
D004F(4M) | 13(25) | |||
D007A(4M) | 0.6~1.2 | 0.5~1 | 18(33) | |
D007F(4M) | 20(35) | |||
D015A(4M) | 1.2~2.4 | 1~2 | 32(55) | |
D015F(4M) | 35(58) | |||
D022A(4M) | 1.8~3.6 | 1.5~3 | 60(86) | |
D022F(4M) | 65(91) | |||
D037A(4M) | 3~6 | 2.5~5 | 64(103) | |
D037F(4M) | 69(1080) | |||
D055A(4M) | 4.5~9 | 3.8~7.5 | 1169178) | |
D055F(4M) | 126(1880) | |||
D075A(4M) | 6~12 | 5~10 | 116(1910) | |
D075F(4M) | 126(201) | |||
400EPM~66RPM(6:1) 480RPM~80RPM(6:1)

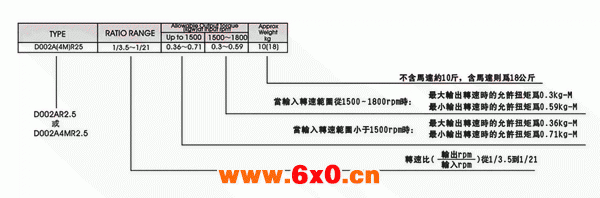

TYPE | RATIO RANGE | Allowable Output torque (kgw)at input rpm | aPProx Welght kg | |
UP to 1500 | 1500~1800 | |||
D002A(4M)R2.5 | 1/3.5~1/21 | 0.36~0.71 | 0.3~0.59 | 10(18) |
D004A(4M)R2.5 | 0.71~1.43 | 0.59~1.19 | 17(28) | |
D007A(4M)R2.5 | 1.43~2.85 | 1.19~2.38 | 23(38) | |
D015A(4M)R2.5 | 2.85~5.7 | 2.38~4.75 | 40(63) | |
D022A(4M)R2.5 | 4.28~8.55 | 3.56~7.13 | 71(97) | |
D037A(4M)R2.5 | 7.13~14.3 | 5.94~11.9 | 75(115) | |
D055A(4M)R2.5 | 10.7~21.4 | 8.9~17.8 | 190(225) | |
D075A(4M)R2.5 | 14.3~28.5 | 11.9~23.8 | 190(265) | |
200RPM~33RPM(6:1) 240RPM~40RPM(6:1)
TYPE | RATIO RANGE | Allowable Output torque (kgw)at input rpm | aPProx Welght kg | |
UP to 1500 | 1500~1800 | |||
D002A(4M)R5 | 1/7~1/42 | 0.71~1.43 | 0.59~1.19 | 10(18) |
D004A(4M)R5 | 4.43~2.85 | 1.19~2.38 | 17(28) | |
D007A(4M)R5 | 2.85~5.7 | 2.38~4.75 | 23(38) | |
D015A(4M)R5 | 5.7~11.4 | 4.75~9.5 | 40(63) | |
D022A(4M)R5 | 8.5~17.1 | 7.13~14.3 | 71(97) | |
D037A(4M)R5 | 14.3~28.5 | 11.9~23.8 | 75(115) | |
D055A(4M)R5 | 21.4~42.8 | 17.8~35.6 | 190(225) | |
D075A(4M)R5 | 28.5~57 | 23.8~47.5 | 190(265) | |
