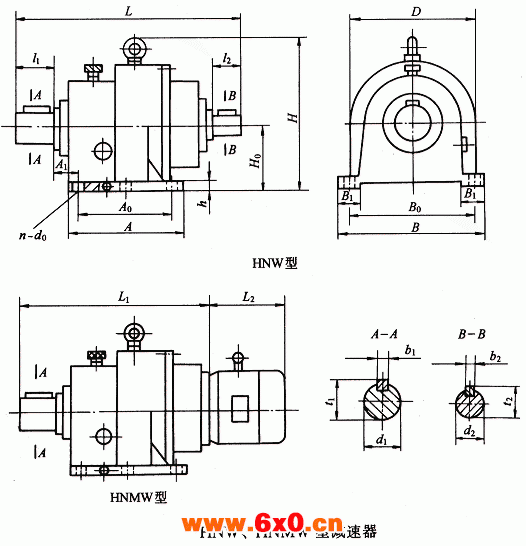

HNW、HNMW型星轮减速机外形及安装尺寸
HNW、HNMW型减速器主要尺寸 /mm
规 格 | 外形尺寸及中心高 | 轴 伸 尺 寸 | 地 脚 尺 寸 | 质量 m/kg | ||||||||||||||||||||
H0 | H | D | L | L1 | L2 | d1 | l 1 | b1 | t1 | d2 | l 2 | b2 | t2 | A | A1 | A0 | B | B1 | B0 | n | d0 | h | ||
10A | 100 | 240 | 200 | 393 | 356 | 245 | 28 j6 | 42 | 8 | 31 | 14 j6 | 25 | 5 | 16 | 180 | 45 | 150 | 240 | 45 | 200 | 4 | 11 | 18 | 30 |
12A | 125 | 290 | 250 | 447 | 407 | 245 | 38 k6 | 58 | 10 | 41 | 19 j6 | 28 | 6 | 21.5 | 236 | 50 | 190 | 300 | 50 | 250 | 4 | 14 | 20 | 50 |
14A | 140 | 325 | 280 | 483 | 453 | 260 | 50 k6 | 82 | 14 | 53.5 | 19 j6 | 28 | 6 | 21.5 | 260 | 50 | 210 | 320 | 50 | 280 | 4 | 18 | 22 | 70 |
16A | 160 | 365 | 320 | 572 | 529 | 260 | 60 m6 | 105 | 18 | 64 | 24 j6 | 36 | 8 | 27 | 300 | 56 | 240 | 360 | 60 | 320 | 4 | 22 | 25 | 95 |
18A | 180 | 420 | 360 | 634 | 585 | 340 | 70 m6 | 105 | 20 | 74.5 | 28 j6 | 42 | 8 | 31 | 335 | 60 | 270 | 420 | 65 | 360 | 4 | 22 | 25 | 135 |
20A | 200 | 470 | 400 | 711 | 656 | 435 | 80 m6 | 130 | 22 | 85 | 30 k6 | 58 | 8 | 33 | 375 | 65 | 300 | 450 | 65 | 400 | 4 | 22 | 30 | 170 |
22A | 225 | 525 | 450 | 783 | 723 | 435 | 90 m6 | 130 | 25 | 95 | 30 k6 | 58 | 8 | 33 | 415 | 71 | 335 | 500 | 70 | 450 | 4 | 26 | 30 | 240 |
25A | 250 | 590 | 500 | 894 | 855 | 535 | 100 m6 | 165 | 28 | 106 | 35 k6 | 58 | 10 | 38 | 475 | 95 | 375 | 560 | 85 | 500 | 4 | 26 | 35 | 370 |
28A | 280 | 645 | 560 | 947 | 884 | 600 | 110 m6 | 165 | 28 | 116 | 40 k6 | 82 | 12 | 43 | 530 | 100 | 420 | 630 | 90 | 560 | 4 | 26 | 40 | 525 |
31A | 315 | 720 | 630 | 1025 | 952 | 600 | 130 m6 | 200 | 32 | 137 | 40 k6 | 82 | 12 | 43 | 600 | 120 | 475 | 700 | 105 | 630 | 6 | 26 | 45 | 716 |
35A | 355 | 825 | 710 | 1089 | 1011 | 665 | 150 m6 | 200 | 36 | 158 | 45 k6 | 82 | 14 | 48.5 | 670 | 120 | 530 | 800 | 140 | 710 | 6 | 33 | 50 | 980 |
40A | 400 | 915 | 800 | 1250 | 1172 | 705 | 170 m6 | 280 | 40 | 179 | 50 k6 | 105 | 14 | 53.5 | 750 | 132 | 600 | 900 | 140 | 800 | 6 | 39 | 55 | 1282 |
45A | 450 | 1040 | 900 | 1419 | 1322 | 860 | 200 m6 | 280 | 45 | 210 | 50 k6 | 105 | 18 | 64 | 850 | 132 | 670 | 1000 | 150 | 900 | 6 | 39 | 60 | 1718 |
50A | 500 | 1130 | 1000 | 1470 | 1373 | 860 | 220 m6 | 280 | 50 | 231 | 60 m6 | 105 | 18 | 64 | 900 | 138 | 750 | 1120 | 170 | 1000 | 6 | 39 | 70 | 2383 |
56A | 560 | 1250 | 1120 | 1660 | 1573 | — | 240 m6 | 330 | 56 | 252 | 65 m6 | 105 | 18 | 69 | 1040 | 140 | 850 | 1250 | 200 | 1120 | 6 | 39 | 75 | 3075 |
11A | 115 | 280 | 225 | 421 | 386 | 245 | 30 k6 | 58 | 8 | 33 | 16 j6 | 28 | 5 | 18 | 210 | 50 | 172 | 280 | 50 | 230 | 4 | 16 | 20 | 34.5 |
13A | 136 | 315 | 265 | 474 | 439 | 245 | 45 k6 | 82 | 14 | 48.5 | 16 j6 | 28 | 5 | 18 | 244 | 50 | 200 | 320 | 50 | 265 | 4 | 18 | 22 | 54 |
15A | 150 | 355 | 300 | 521 | 478 | 260 | 50 k6 | 82 | 14 | 53.5 | 20 j6 | 36 | 6 | 22.5 | 280 | 50 | 225 | 360 | 60 | 300 | 4 | 18 | 25 | 75 |
17A | 170 | 410 | 340 | 602 | 563 | 340 | 60 m6 | 105 | 18 | 64 | 28 j6 | 42 | 8 | 31 | 335 | 36 | 275 | 430 | 75 | 380 | 4 | 22 | 30 | 100 |
19A | 190 | 460 | 380 | 689 | 660 | 435 | 80 m6 | 130 | 22 | 85 | 28 j6 | 42 | 8 | 31 | 380 | 36 | 320 | 470 | 85 | 420 | 4 | 22 | 30 | 142 |
21A | 215 | 515 | 430 | 713 | 674 | 435 | 90 m6 | 130 | 25 | 95 | 28 j6 | 42 | 8 | 31 | 380 | 36 | 320 | 470 | 85 | 420 | 4 | 22 | 30 | 182 |
23A | 236 | 580 | 475 | 843 | 789 | 435 | 100 m6 | 165 | 28 | 106 | 30 k6 | 58 | 8 | nselect="," ?n, ull?> 33 | 440 | 39 | 380 | 470 | 120 | 420 | 4 | 22 | 35 | 252 |
26A | 265 | 630 | 530 | 930 | 875 | 535 | 110 m6 | 165 | 28 | 116 | 40 k6 | 82 | 12 | 43 | 475 | 45 | 395 | 580 | 120 | 480 | 4 | 26 | 40 | 392 |
30A | 300 | 705 | 600 | 1014 | 959 | 600 | 130 m6 | 200 | 32 | 137 | 40 k6 | 82 | 12 | 43 | 600 | 80 | 500 | 690 | 120 | 630 | 4 | 30 | 45 | 562 |
33A | 335 | 810 | 670 | 1056 | 989 | 665 | 140 m6 | 200 | 36 | 148 | 40 k6 | 82 | 12 | 43 | 580 | 63 | 480 | 720 | 128 | 630 | 4 | 39 | 50 | 760 |
37A | 375 | 890 | 750 | 1186 | 1140 | 705 | 160 m6 | 240 | 40 | 169 | 45 k6 | 82 | 14 | 48.5 | 700 | 90 | 590 | 880 | 150 | 770 | 4 | 45 | 60 | 1035 |
42A | 425 | 1015 | 850 | 1223 | 1173 | 705 | 180 m6 | 240 | 45 | 190 | 50 k6 | 82 | 14 | 53.5 | 790 | 132 | 640 | 950 | 160 | 850 | 6 | 45 | 65 | 1362 |
47A | 475 | 1105 | 950 | 1344 | 1294 | 790 | 220 m6 | 280 | 50 | 231 | 50 k6 | 82 | 14 | 53.5 | 880 | 138 | 710 | 1090 | 170 | 950 | 6 | 53 | 70 | 1813 |
53A | 530 | 1220 | 1060 | 1484 | 1425 | 910 | 240 m6 | 330 | 56 | 252 | 55 k6 | 82 | 16 | 59 | 980 | 140 | 800 | 1200 | 200 | 1060 | 6 | 53 | 70 | 2525 |
