TP系列行星齿轮减速机安装尺寸（型号：TP2NAZ）9
轴端螺纹孔mm | |||||||||||
轴径Фd | ≥16-21 | ＞21-24 | ＞24-30 | ＞30-38 | ＞38-50 | ＞50-85 | ＞85-130 | ＞130-225 | ＞225-320 | ＞320-500 | ＞500-700 |
螺孔尺寸 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 |

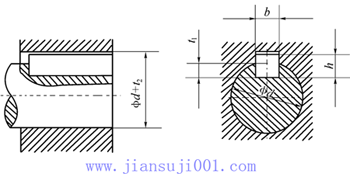

平键和键槽 mm | |||||
 | 直径 d | 宽度 b | 高度 h | 轴键槽深度 t1 | 轮毂键槽深度 d+t2 |
＞8-10 | 3 | 3 | 1.8 | d+1.4 | |
＞10-12 | 4 | 4 | 2.5 | d+1.8 | |
＞12-17 | 5 | 5 | 3 | d+2.3 | |
＞17-22 | 6 | 6 | 3.5 | d+2.8 | |
＞22-30 | 8 | 7 | 4 | d+3.3 | |
＞30-38 | 10 | 8 | 5 | d+3.3 | |
＞38-44 | 12 | 8 | 5 | d+3.3 | |
＞44-50 | 14 | 9 | 5.5 | d+3.8 | |
＞50-58 | 16 | 10 | 6 | d+4.3 | |
＞58-65 | 18 | 11 | 7 | d+4.4 | |
＞65-75 | 20 | 12 | 7.5 | d+4.9 | |
＞75-85 | 22 | 14 | 9 | d+5.4 | |
＞85-95 | 25 | 14 | 9 | d+5.4 | |
＞95-110 | 28 | 16 | 10 | d+6.4 | |
＞110-130 | 32 | 18 | 11 | d+7.4 | |
＞130-150 | 36 | 20 | 12 | d+8.4 | |
＞150-170 | 40 | 22 | 13 | d+9.4 | |
＞170-200 | 45 | 25 | 15 | d+10.4 | |
＞200-230 | 50 | 28 | 17 | d+11.4 | |
＞230-260 | 56 | 32 | 20 | d+12.4 | |
＞260-290 | 63 | 32 | 20 | d+12.4 | |
＞290-330 | 70 | 36 | 22 | d+14.4 | |
＞330-380 | 80 | 40 | 25 | d+15.4 | |
＞380-440 | 90 | 45 | 28 | d+17.4 | |
＞440-500 | 100 | 50 | 31 | d+19.4 | |
