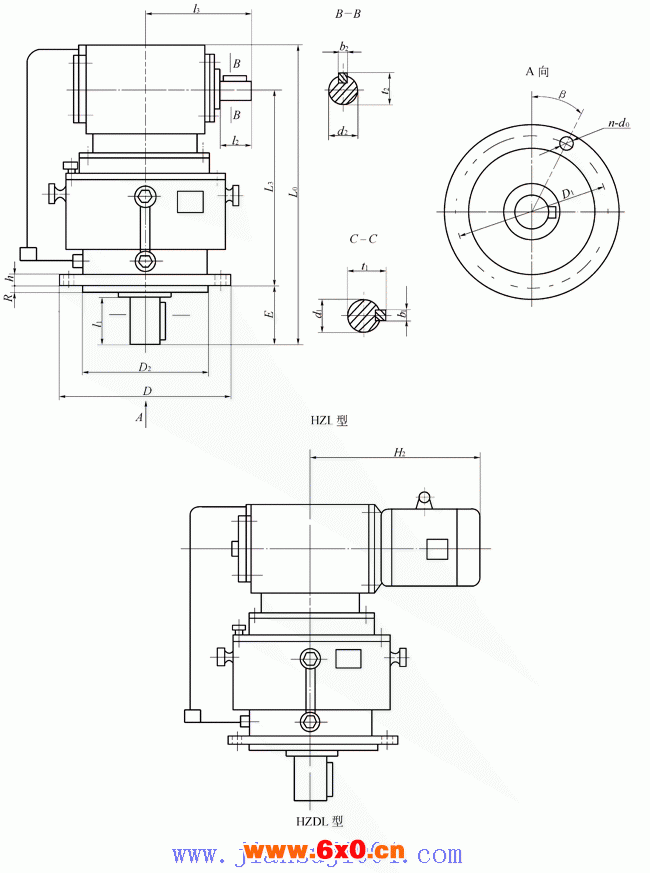

HZL、HZDL型垂直出轴混合少齿差行星齿轮减速机型式及主要尺寸
HZL、HZDL型减速器主要尺寸 /mm
规格 | 安 装 尺 寸 | 输 出 轴 | 输 入 轴 | 外 形 尺 寸 | ||||||||||||||||||||
D | D1 | D2 | L3 | L2 | ι3 | E | h | R | β | n | d0 | d1 (m6) | ι1 | b1 | t1 | d2 (m6) | ι2 | b2 | t2 | L | L0 | H | H2 | |
16 | 300 | 265 | 230 | 472 | 460 | 234 | 109 | 22 | 4 | 22.5° | 8 | 14 | 60 | 105 | 18 | 64 | 35 | 58 | 10 | 38 | 715 | 727 | 472 | 576 |
18 | 350 | 300 | 250 | 527 | 515 | 234 | 110 | 24 | 5 | 22.5° | 8 | 18 | 65 | 105 | 18 | 64 | 35 | 58 | 10 | 38 | 770 | 782 | 527 | 616 |
20 | 400 | 350 | 300 | 594 | 537 | 234 | 110 | 26 | 5 | 22.5° | 8 | 18 | 70 | 105 | 20 | 74.5 | 35 | 58 | 10 | 38 | 792 | 804 | 594 | 616 |
22 | 450 | 400 | 350 | 660 | 648 | 308 | 136 | 26 | 6 | 22.5° | 8 | 18 | 80 | 130 | 22 | 85 | 40 | 82 | 12 | 43 | 953 | 965 | 660 | 771 |
25 | 500 | 450 | 400 | 724 | 708 | 308 | 136 | 30 | 6 | 15° | 12 | 22 | 95 | 130 | 25 | 100 | 40 | 82 | 12 | 43 | 1013 | 1029 | 724 | 811 |
28 | 550 | 500 | 450 | 828 | 812 | 389 | 173 | 35 | 8 | 15° | 12 | 22 | 110 | 165 | 28 | 116 | 60 | 105 | 18 | 64 | 1202 | 1218 | 828 | 954 |
31 | 650 | 590 | 530 | 865 | 847 | 389 | 175 | 40 | 10 | 15° | 12 | 26 | 120 | 165 | 32 | 127 | 60 | 105 | 18 | 64 | 1237 | 1255 | 865 | 994 |
35 | 750 | 670 | 600 | 939 | 921 | 389 | 210 | 45 | 10 | 15° | 12 | 32 | 140 | 200 | 36 | 148 | 60 | 105 | 18 | 64 | 1346 | 1364 | 939 | 994 |
40 | 850 | 760 | 670 | 907 | 889 | 450 | 250 | 50 | 10 | 15° | 12 | 32 | 160 | 240 | 40 | 169 | 70 | 105 | 20 | 74.5 | 1404 | 1422 | 907 | 1260 |
45 | 950 | 850 | 750 | 1082 | 1064 | 450 | 250 | 55 | 10 | 15° | 12 | 32 | 180 | 240 | 45 | 190 | 70 | 105 | 20 | 74.5 | 1579 | 1597 | 1082 | 1260 |
50 | 1050 | 950 | 850 | 1203 | 1185 | 540 | 290 | 60 | 10 | 15° | 12 | 32 | 200 | 280 | 45 | 210 | 80 | 130 | 22 | 85 | 1740 | 1758 | 1203 | 1325 |
56 | 1150 | 1050 | 950 | 1307 | 1289 | 540 | 290 | 65 | 10 | 15° | 12 | 32 | 220 | 280 | 50 | 231 | 80 | 130 | 22 | 85 | 1844 | 1862 | 1307 | 1325 |
