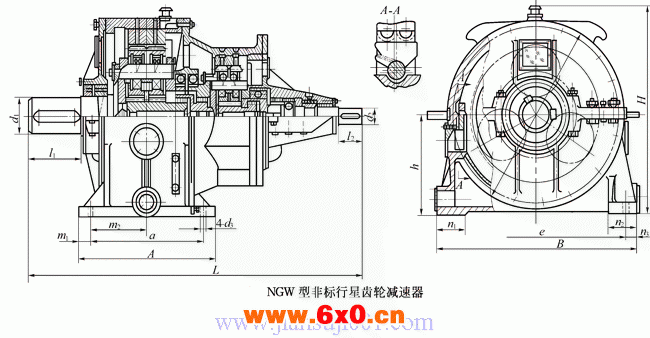

NGW型非标行星齿轮减速器安装尺寸
NGW型非标行星齿轮减速器外形尺寸 (mm)
图号 | L | B | H | D | A | a | h | l1 | l2 | d1 | d2 | d3 | m1 | m2 | e | n1 | n2 | n3 | 重量/kg |
K136P | 2350 | 1400 | 1741 | 1200 | 1220 | 1000 | 870 | 420 | 210 | 340 | 120 | 80 | 110 | 500 | 1180 | 300 | 300 | 110 | 11664 |
K137P | 2238.5 | 1260 | 1596 | 1080 | 1080 | 880 | 795 | 320 | 100 | 440 | 1035 | 290 | 290 | 112.5 | 9000 | ||||
K143P | 2125 | 1550 | 1696 | 1250 | 1040 | 810 | 350 | 110 | 380 | 60 | 70 | 80 | 1390 | 275 | 275 | 80 | 11264 | ||
K144P | 2238.5 | 1260 | 1596 | 1080 | 1080 | 795 | 320 | 210 | 340 | 120 | 80 | 100 | 1035 | 290 | 290 | 112.5 | 9000 | ||
K147P | 2705 | 1410 | 1140 | 940 | 800 | 450 | 180 | 130 | 86 | 470 | 1600 | 250 | 250 | 100 | 12901 | ||||
K150P | 1800 | 1771 | 13000 | ||||||||||||||||
K240P | 2725 | 805 | 200 | 13024 | |||||||||||||||
K241P | 1670 | 1716 | 1290 | 1470 | 11156 | ||||||||||||||
K242P | 2575 | 1700 | 1766 | 1400 | 1120 | 900 | 800 | 380 | 250 | 320 | 140 | 110 | 450 | 1480 | 110 | 10767 | |||
K247P | 2724.5 | 2160 | 1891 | 1720 | 1100 | 810 | 350 | 550 | 250 | 340 | 140 | 70 | 145 | 140 | 1940 | 220 | 220 | 110 | 14000 |
