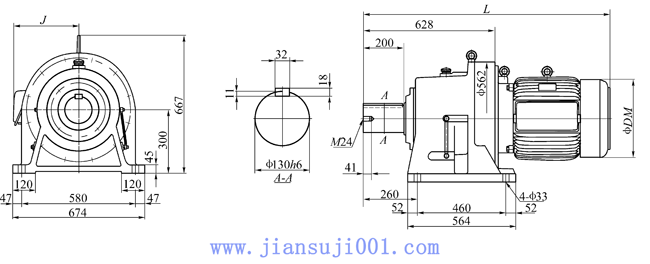

THM-823摆线针轮减速机外形及安装尺寸
马达 | 传仕摆线减速马达 | 公制(mm、kg) | ||||||
kW | HP | 极数 | L | J | DM | H | 重量 | |
15 | 20 | 6 | THHM20/6-823 | 1200 | 305 | 382 | 697 | |
18.5 | 25 | 6 | THHM25/6-823 | 1238 | 305 | 382 | 697 | |
22 | 30 | 6 | THHM30/6-823 | 1238 | 305 | 382 | 697 | |
30 | 40 | 6 | THHM30/6-823 | 1400 | 339 | 420 | 743 | |
37 | 50 | 6 | THHM37/6-823 | 1400 | 339 | 420 | 743 | |
45 | 60 | 6 | THHM60/6-823 | 1430 | 387 | 458 | 832 | |
55 | 75 | 6 | THHM55/6-823 | 1492 | 515 | 542 | 886 |
