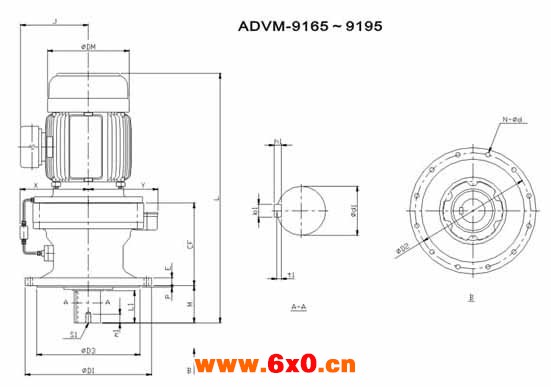

ADC系列摆线减速机尺寸图表ADVM-9165～9195
ADVM-9165～9195尺寸图表 | ||||||||||||||||||
ADVM | CF | D1 | D2 | D3 | M | E | P | N | d | x | Y | 输出轴尺寸 | ||||||
d1 | L1 | b1 | h1 | t1 | S1 | M1 | ||||||||||||
9165 | 219 | 400 | 310 | 270 | 89 | 20 | 4 | 6 | 11 | 220 | 202 | 60 | 80 | 18 | 11 | 7 | M10 | 18 |
9175 | 258 | 400 | 360 | 316 | 94 | 22 | 5 | 8 | 14 | 225 | 228 | 70 | 84 | 20 | 12 | 7.5 | M12 | 24 |
9185 | 279 | 430 | 390 | 345 | 110 | 22 | 5 | 8 | 18 | 240 | 242 | 80 | 100 | 22 | 14 | 9 | M12 | 24 |
9195 | 320 | 490 | 450 | 400 | 145 | 30 | 6 | 12 | 18 | 268 | 272 | 95 | 125 | 25 | 14 | 9 | M20 | 34 |
型号 | 电机 | L | J | DM | W（KG） | ||
KW | HP | 极数 | |||||
ADVM2-9165-Ratio | 1.5 | 2 | 4 | 595 | 150 | 200 | 105 |
ADVM3-9165-Ratio | 2.2 | 3 | 4 | 623 | 173 | 219 | 116 |
ADVM5-9165-Ratio | 3.7 | 5 | 4 | 642 | 188 | 238 | 126 |
ADVM8-9165-Ratio | 5.5 | 7.5 | 4 | 677 | 218 | 273 | 142 |
ADVM10-9165-Ratio | 7.5 | 10 | 4 | 715 | 224 | 273 | 153 |
ADVM15-9165-Ratio | 11 | 15 | 4 | 802 | 256 | 334 | 175 |
ADVM20-9165-Ratio | 15 | 20 | 4 | 845 | 256 | 334 | 192 |
ADVM5-9175-Ratio | 3.7 | 5 | 4 | 699 | 188 | 238 | 172 |
ADVM8-9175-Ratio | 5.5 | 7.5 | 4 | 732 | 218 | 273 | 186 |
ADVM10-9175-Ratio | 7.5 | 10 | 4 | 770 | 224 | 273 | 200 |
ADVM15-9175-Ratio | 11 | 15 | 4 | 845 | 256 | 334 | 200 |
ADVM20-9175-Ratio | 15 | 20 | 4 | 889 | 256 | 334 | 235 |
ADVM25-9175-Ratio | 18.5 | 25 | 4 | 912 | 306 | 382 | 302 |
ADVM30-9175-Ratio | 22 | 30 | 4 | 912 | 306 | 382 | 302 |
ADVM5-9185-Ratio | 3.7 | 5 | 4 | 757 | 188 | 238 | 197 |
ADVM8-9185-Ratio | 5.5 | 7.5 | 4 | 777 | 218 | 273 | 213 |
ADVM10-9185-Ratio | 7.5 | 10 | 4 | 817 | 224 | 273 | 225 |
ADVM15-9185-Ratio | 11 | 15 | 4 | 885 | 256 | 334 | 262 |
ADVM20-9185-Ratio | 15 | 20 | 4 | 929 | 256 | 334 | 267 |
ADVM25-9185-Ratio | 18.5 | 25 | 4 | 952 | 306 | 382 | 328 |
ADVM30-9185-Ratio | 22 | 30 | 4 | 952 | 306 | 382 | 328 |
ADVM40-9185-Ratio | 30 | 40 | 4 | 990 | 306 | 382 | 345 |
ADVM8-9195-Ratio | 5.5 | 7.5 | 4 | 845 | 218 | 273 | 275 |
ADVM10-9195-Ratio | 7.5 | 10 | 4 | 890 | 224 | 273 | 286 |
ADVM15-9195-Ratio | 11 | 15 | 4 | 965 | 262 | 334 | 312 |
ADVM20-9195-Ratio | 15 | 20 | 4 | 1009 | 262 | 334 | 332 |
ADVM25-9195-Ratio | 18.5 | 25 | 4 | 1028 | 306 | 382 | 402 |
ADVM30-9195-Ratio | 22 | 30 | 4 | 1028 | 306 | 382 | 402 |
ADVM40-9195-Ratio | 30 | 40 | 4 | 1066 | 306 | 382 | 418 |
ADVM50-9195-Ratio | 37 | 50 | 4 | 1128 | 339 | 420 | 454 |
