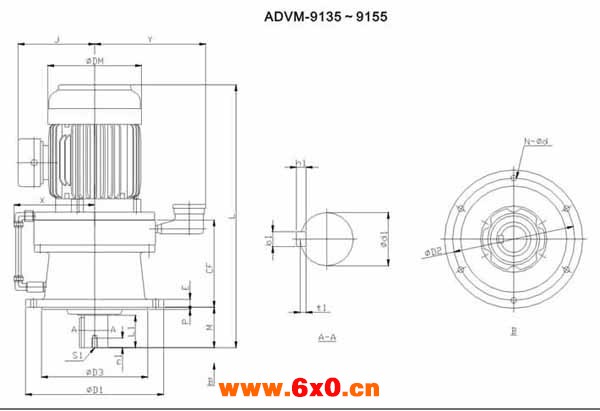

ADC系列摆线减速机尺寸图表ADVM-9135~9155TB
ADVM-9135~9155TB尺寸图表 | ||||||||||||||||||
ADVM | CF | D1 | D2 | D3 | M | E | P | N | d | x | y | 输出轴尺寸 | ||||||
d1 | L1 | b1 | h1 | t1 | S1 | M1 | ||||||||||||
9135 | 164 | 260 | 230 | 200 | 76 | 15 | 4 | 6 | 11 | 155 | 210 | 50 | 61 | 14 | 9 | 5.5 | M10 | 18 |
9145 | 164 | 260 | 230 | 200 | 96 | 15 | 4 | 6 | 11 | 155 | 210 | 50 | 81 | 14 | 9 | 5.5 | M10 | 18 |
9155 | 164 | 260 | 230 | 200 | 96 | 15 | 4 | 6 | 11 | 155 | 210 | 50 | 81 | 14 | 9 | 5.5 | M10 | 18 |
型号 | 电机 | L | J | DM | W(KG) | ||
KW | HP | 极数 | |||||
ADVM1-9135-Ratio | 0.75 | 1 | 4 | 485 | 143 | 77 | 58 |
ADVM2-9135-Ratio | 1.5 | 2 | 4 | 525 | 150 | 200 | 66 |
ADVM3-9135-Ratio | 2.2 | 3 | 4 | 552 | 173 | 219 | 78 |
ADVM5-9135-Ratio | 3.7 | 5 | 4 | 570 | 188 | 238 | 90 |
ADVM8-9135-Ratio | 5.5 | 7.5 | 4 | 615 | 218 | 273 | 104 |
ADVM10-9135-Ratio | 7.5 | 10 | 4 | 654 | 224 | 273 | 115 |
ADVM1-9145-Ratio | 0.75 | 1 | 4 | 505 | 143 | 77 | 58 |
ADVM2-9145-Ratio | 1.5 | 2 | 4 | 545 | 150 | 200 | 68 |
ADVM3-9145-Ratio | 2.2 | 3 | 4 | 572 | 173 | 219 | 80 |
ADVM5-9145-Ratio | 3.7 | 5 | 4 | 592 | 188 | 238 | 90 |
ADVM8-9145-Ratio | 5.5 | 7.5 | 4 | 635 | 218 | 273 | 105 |
ADVM10-9145-Ratio | 7.5 | 10 | 4 | 674 | 224 | 273 | 116 |
ADVM1-9155-Ratio | 0.75 | 1 | 4 | 505 | 143 | 77 | 58 |
ADVM2-9155-Ratio | 1.5 | 2 | 4 | 545 | 150 | 200 | 68 |
ADVM3-9155-Ratio | 2.2 | 3 | 4 | 572 | 173 | 219 | 80 |
ADVM5-9155-Ratio | 3.7 | 5 | 4 | 592 | 188 | 238 | 90 |
ADVM8-9155-Ratio | 5.5 | 7.5 | 4 | 635 | 218 | 273 | 105 |
ADVM10-9155-Ratio | 7.5 | 10 | 4 | 674 | 224 | 273 | 116 |
ADVM15-9155-Ratio | 11 | 15 | 4 | 754 | 256 | 334 | 142 |
