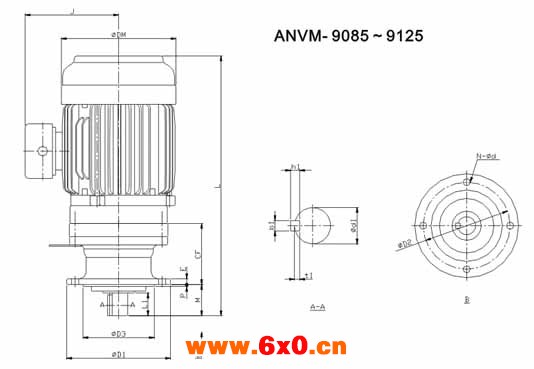

ADC系列摆线减速机尺寸图表ANVM-9085~9125TB
ANVM-9085~9125TB尺寸图表 | |||||||||||||||
ANVM | CF | D1 | D2 | D3 | M | E | P | N | d | H | 输出轴尺寸 | ||||
d1 | L1 | b1 | h1 | t1 | |||||||||||
9085 | 56 | 160 | 134 | 110 | 42 | 9 | 3 | 4 | 11 | - | 18 | 30 | 6 | 6 | 3.5 |
9095 | 94 | 160 | 134 | 110 | 48 | 9 | 3 | 4 | 11 | 110 | 28 | 35 | 8 | 7 | 4 |
9105 | 108 | 160 | 134 | 110 | 48 | 9 | 3 | 4 | 11 | 110 | 28 | 35 | 8 | 7 | 4 |
9115 | 117 | 210 | 180 | 140 | 69 | 13 | 4 | 6 | 11 | 140 | 38 | 55 | 10 | 8 | 5 |
9125 | 117 | 210 | 180 | 140 | 69 | 13 | 4 | 6 | 11 | - | 38 | 55 | 10 | 8 | 5 |
型号 | 电机 | L | J | DM | W(KG) | ||
KW | HP | 极数 | |||||
ANVM02 -9085-Ratio | 0.2 | 1/4 | 4 | 318 | 122 | 144 | 14 |
ANVM05 -9085-Ratio | 0.4 | 1/2 | 4 | 388 | 133 | 162 | 16 |
ANVM02 -9095-Ratio | 0.2 | 1/4 | 4 | 362 | 122 | 144 | 18 |
ANVM05 -9095-Ratio | 0.4 | 1/2 | 4 | 382 | 133 | 162 | 20 |
ANVM1 -9095-Ratio | 0.75 | 1 | 4 | 382 | 138 | 177 | 24 |
ANVM02 -9105-Ratio | 0.2 | 1/4 | 4 | 376 | 122 | 144 | 20 |
ANVM05 -9105-Ratio | 0.4 | 1/2 | 4 | 398 | 133 | 162 | 23 |
ANVM1 -9105-Ratio | 0.75 | 1 | 4 | 398 | 138 | 177 | 27 |
ANVM2 -9105-Ratio | 1.5 | 2 | 4 | 433 | 150 | 200 | 36 |
ANVM3 -9105-Ratio | 22 | 3 | 4 | 468 | 173 | 219 | 46 |
ANVM05 -9115-Ratio | 0.4 | 1/2 | 4 | 426 | 133 | 162 | 35 |
ANVM1 -9115-Ratio | 0.75 | 1 | 4 | 435 | 138 | 177 | 39 |
ANVM2 -9115-Ratio | 1.5 | 2 | 4 | 472 | 150 | 200 | 48 |
ANVM3 -9115-Ratio | 2.2 | 3 | 4 | 498 | 173 | 219 | 58 |
ANVM5 -9115-Ratio | 3.7 | 5 | 4 | 514 | 188 | 238 | 68 |
ANVM1 -9125-Ratio | 0.75 | 1 | 4 | 435 | 138 | 177 | 39 |
ANVM3 -9125-Ratio | 2.2 | 3 | 4 | 498 | 173 | 219 | 58 |
ANVM5 -9125-Ratio | 3.7 | 5 | 4 | 514 | 188 | 238 | 68 |
ANVM8 -9125-Ratio | 5.5 | 7.5 | 4 | 558 | 223 | 273 | 88 |
