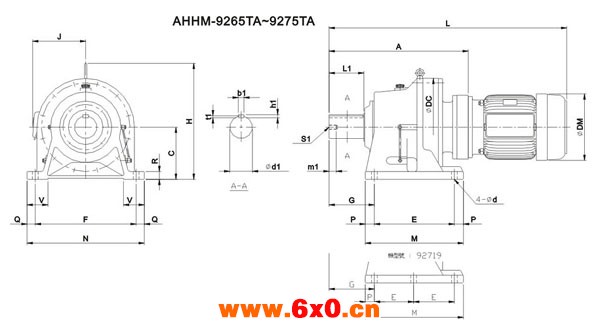

ADC系列摆线减速机尺寸图表AHHM-9265TA～9275TA
AHHM-9265TA～9275TA 尺寸图表 | ||||||||||||||||||||
AHHM | A | C | DC | E | F | G | M | N | P | Q | R | V | d | 输出轴尺寸 | ||||||
d1 | L1 | b1 | h1 | t1 | S1 | m1 | ||||||||||||||
9265TA | 1088 | 400 | 736 | 590 | 770 | 390 | 702 | 882 | 56 | 56 | 55 | 160 | 45 | 170 | 300 | 40 | 22 | 13 | M30 | 49 |
9275TA | 1349 | 540 | 950 | 420 | 1050 | 485 | 1040 | 1162 | 100 | 56 | 60 | 200 | 45 | 180 | 330 | 45 | 25 | 15 | M30 | 52 |
型号 | 电机 | L | J | DM | H | W（KG） | ||
KW | HP | 极数 | ||||||
AHHM8 -9265TA-Ratio | 5.5 | 7.5 | 4 | 1475 | 224 | 273 | 874 | 1252 |
AHHM10 -9265TA-Ratio | 7.5 | 10 | 4 | 1512 | 224 | 273 | 874 | 1264 |
AHHM15 -9265TA-Ratio | 11 | 15 | 4 | 1588 | 262 | 334 | 874 | 1394 |
AHHM20 -9265TA-Ratio | 15 | 20 | 4 | 1632 | 262 | 334 | 874 | 1445 |
AHHM25 -9265TA-Ratio | 18.5 | 25 | 4 | 1650 | 306 | 382 | 874 | 1520 |
AHHM30 -9265TA-Ratio | 22 | 30 | 4 | 1650 | 306 | 382 | 874 | 1520 |
AHHM40 -9265TA-Ratio | 30 | 40 | 4 | 1688 | 306 | 382 | 874 | 1535 |
AHHM50 -9265TA-Ratio | 37 | 50 | 4 | 1750 | 340 | 420 | 874 | 1570 |
AHHM8 -9275TA-Ratio | 5.5 | 7.5 | 4 | 1735 | 224 | 273 | 1162 | 2502 |
AHHM10 -9275TA-Ratio | 7.5 | 10 | 4 | 1774 | 224 | 273 | 1162 | 2535 |
AHHM15-9275TA-Ratio | 11 | 15 | 4 | 1848 | 262 | 334 | 1162 | 2530 |
AHHM20 -9275TA-Ratio | 15 | 20 | 4 | 1892 | 262 | 334 | 1162 | 2580 |
AHHM25 -9275TA-Ratio | 18.5 | 25 | 4 | 1912 | 306 | 382 | 1162 | 2655 |
AHHM30 -9275TA-Ratio | 22 | 30 | 4 | 1912 | 306 | 382 | 1162 | 2655 |
AHHM40 -9275TA-Ratio | 30 | 40 | 4 | 1950 | 306 | 382 | 1162 | 2670 |
AHHM50 -9275TA-Ratio | 37 | 50 | 4 | 2012 | 340 | 420 | 1162 | 2705 |
