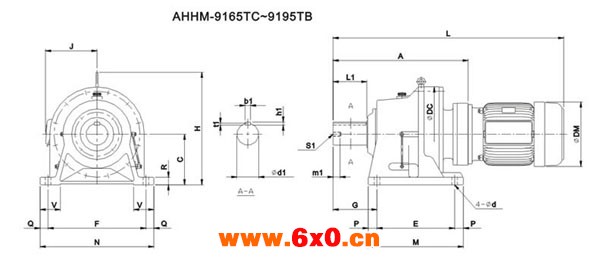

ADC系列摆线减速机尺寸图表AHHM-9165TC～9195TB
AHHM-9165TC～9195TB尺寸图表 | ||||||||||||||||||||
AHHM | A | C | DC | E | F | G | M | N | P | Q | R | V | d | 输出轴尺寸 | ||||||
d1 | L1 | b1 | h1 | t1 | S1 | m1 | ||||||||||||||
9165TC | 389 | 160 | 300 | 150 | 370 | 139 | 242 | 414 | 46 | 22 | 25 | 75 | 18 | 60 | 90 | 18 | 11 | 7 | M10 | 18 |
9175TC | 436 | 200 | 340 | 275 | 380 | 125 | 337 | 432 | 31 | 26 | 30 | 80 | 22 | 70 | 90 | 20 | 12 | 7.5 | M12 | 24 |
9185TB | 496 | 220 | 370 | 320 | 420 | 145 | 382 | 472 | 31 | 26 | 30 | 85 | 22 | 80 | 110 | 22 | 14 | 9 | M12 | 24 |
9195TA | 556 | 250 | 430 | 380 | 480 | 170 | 442 | 532 | 31 | 26 | 36 | 90 | 26 | 95 | 135 | 25 | 14 | 9 | M20 | 34 |
9195TB | 572 | 250 | 430 | 380 | 480 | 170 | 442 | 532 | 31 | 26 | 36 | 90 | 26 | 95 | 135 | 25 | 14 | 9 | M20 | 34 |
型号 | 电机 | L | J | DM | H | W（KG） | ||
KW | HP | 极数 | ||||||
AHHM05-9165TC-Ratio | 0.4 | 1/2 | 4 | 630 | 133 | 162 | 349 | 100 |
AHHM1-9165TC-Ratio | 0.75 | 1 | 4 | 638 | 138 | 177 | 349 | 105 |
AHHM2-9165TC-Ratio | 1.5 | 2 | 4 | 675 | 150 | 200 | 349 | 116 |
AHHM3-9165TC-Ratio | 2.2 | 3 | 4 | 700 | 174 | 219 | 349 | 130 |
AHHM5-9165TC-Ratio | 3.7 | 5 | 4 | 718 | 188 | 238 | 349 | 140 |
AHHM05-9175TC-Ratio | 0.4 | 1/2 | 4 | 675 | 133 | 162 | 416 | 135 |
AHHM1-9175TC-Ratio | 0.75 | 1 | 4 | 685 | 138 | 177 | 416 | 142 |
AHHM2-9175TC-Ratio | 1.5 | 2 | 4 | 722 | 150 | 200 | 416 | 154 |
AHHM3-9175TC-Ratio | 2.2 | 3 | 4 | 748 | 174 | 219 | 416 | 165 |
AHHM5-9175TC-Ratio | 3.7 | 5 | 4 | 765 | 188 | 238 | 416 | 175 |
AHHM1-9185TB-Ratio | 0.75 | 1 | 4 | 740 | 138 | 177 | 451 | 196 |
AHHM2-9185TB-Ratio | 1.5 | 2 | 4 | 780 | 150 | 200 | 451 | 208 |
AHHM3-9185TB-Ratio | 2.2 | 3 | 4 | 808 | 174 | 219 | 451 | 220 |
AHHM5-9185TB-Ratio | 3.7 | 5 | 4 | 828 | 188 | 238 | 451 | 225 |
AHHM8-9185TB-Ratio | 5.5 | 7.5 | 4 | 870 | 219 | 273 | 451 | 232 |
AHHM10-9185TB-Ratio | 7.5 | 10 | 4 | 910 | 224 | 273 | 451 | 238 |
AHHM05-9195TA-Ratio | 0.4 | 1/2 | 4 | 795 | 133 | 162 | 531 | 245 |
AHHM1-9195TA-Ratio | 0.75 | 1 | 4 | 805 | 138 | 177 | 531 | 258 |
AHHM2-9195TA-Ratio | 1.5 | 2 | 4 | 842 | 150 | 200 | 531 | 266 |
AHHM3-9195TA-Ratio | 2.2 | 3 | 4 | 868 | 174 | 219 | 531 | 278 |
AHHM5-9195TA-Ratio | 3.7 | 5 | 4 | 885 | 188 | 238 | 531 | 288 |
AHHM1-9195TB-Ratio | 0.75 | 1 | 4 | 818 | 138 | 177 | 531 | 265 |
AHHM2-9195TB-Ratio | 1.5 | 2 | 4 | 858 | 150 | 200 | 531 | 277 |
AHHM3-9195TB-Ratio | 2.2 | 3 | 4 | 885 | 174 | 219 | 531 | 288 |
AHHM5-9195TB-Ratio | 3.7 | 5 | 4 | 903 | 188 | 238 | 531 | 296 |
AHHM8-9195TB-Ratio | 5.5 | 7.5 | 4 | 948 | 219 | 273 | 531 | 302 |
AHHM10-9195TB-Ratio | 7.5 | 10 | 4 | 986 | 224 | 273 | 531 | 314 |
