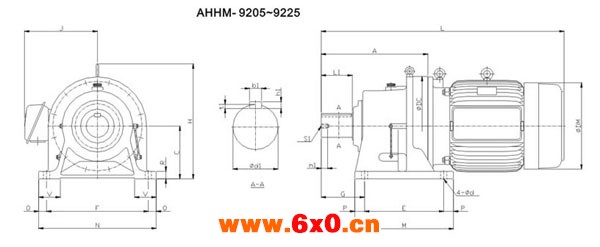

ADC系列摆线减速机尺寸图表AHHM-9205～9225
AHHM-9205～9225尺寸图表 | ||||||||||||||||||||
AHHM | A | C | DC | E | F | G | M | N | P | Q | R | V | d | 输出轴尺寸 | ||||||
d1 | L1 | b1 | h1 | t1 | S1 | m1 | ||||||||||||||
9205 | 502 | 250 | 471 | 360 | 440 | 215 | 442 | 532 | 41 | 46 | 35 | 100 | 26 | 100 | 165 | 28 | 16 | 10 | M20 | 34 |
9215 | 526 | 265 | 507 | 395 | 480 | 210 | 477 | 582 | 41 | 51 | 40 | 110 | 26 | 110 | 165 | 28 | 16 | 10 | M20 | 34 |
9225 | 566 | 280 | 549 | 420 | 540 | 230 | 522 | 622 | 51 | 41 | 40 | 115 | 33 | 120 | 165 | 32 | 18 | 11 | M20 | 34 |
型号 | 电机 | L | J | DM | H | W（KG） | ||
KW | HP | |||||||
AHHM15-9205-Ratio | 11 | 15 | 4 | 1002 | 262 | 334 | 530 | 315 |
AHHM20-9205-Ratio | 15 | 20 | 4 | 1047 | 262 | 334 | 530 | 368 |
AHHM25-9205-Ratio | 18.5 | 25 | 4 | 1065 | 306 | 382 | 530 | 438 |
AHHM30-9205-Ratio | 22 | 30 | 4 | 1065 | 306 | 382 | 530 | 438 |
AHHM40-9205-Ratio | 30 | 40 | 4 | 1105 | 306 | 382 | 530 | 452 |
AHHM50-9205-Ratio | 37 | 50 | 4 | 1168 | 340 | 420 | 530 | 488 |
AHHM60-9205-Ratio | 45 | 60 | 4 | 1168 | 340 | 420 | 530 | 488 |
AHHM15-9215-Ratio | 11 | 15 | 4 | 1026 | 262 | 334 | 575 | 400 |
AHHM20-9215-Ratio | 15 | 20 | 4 | 1070 | 262 | 334 | 575 | 452 |
AHHM25-9215-Ratio | 18.5 | 25 | 4 | 1090 | 306 | 382 | 575 | 515 |
AHHM30-9215-Ratio | 22 | 30 | 4 | 1090 | 306 | 382 | 575 | 515 |
AHHM40-9215-Ratio | 30 | 40 | 4 | 1128 | 306 | 382 | 575 | 528 |
AHHM50-9215-Ratio | 37 | 50 | 4 | 1190 | 340 | 420 | 575 | 560 |
AHHM60-9215-Ratio | 45 | 60 | 4 | 1190 | 340 | 420 | 575 | 560 |
AHHM75-9215-Ratio | 55 | 75 | 4 | 1228 | 388 | 458 | 575 | 675 |
AHHM25-9225-Ratio | 18.5 | 25 | 4 | 1130 | 306 | 382 | 610 | 600 |
AHHM30-9225-Ratio | 22 | 30 | 4 | 1130 | 306 | 382 | 610 | 600 |
AHHM40-9225-Ratio | 30 | 40 | 4 | 1168 | 306 | 382 | 610 | 615 |
AHHM50-9225-Ratio | 37 | 50 | 4 | 1230 | 340 | 420 | 610 | 652 |
AHHM60-9225-Ratio | 45 | 60 | 4 | 1230 | 340 | 420 | 610 | 652 |
AHHM75-9225-Ratio | 55 | 75 | 4 | 1290 | 388 | 458 | 610 | 750 |
