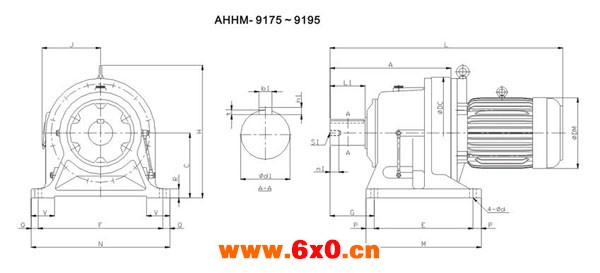

ADC系列摆线减速机尺寸图表AHHM-9175～9195
AHHM-9175～9195尺寸图表 | ||||||||||||||||||||
AHHM | A | C | DC | E | F | G | M | N | P | Q | R | V | d | 输出轴尺寸 | ||||||
d1 | L1 | b1 | h1 | t1 | S1 | m1 | ||||||||||||||
9175 | 352 | 200 | 362 | 275 | 380 | 125 | 337 | 432 | 31 | 26 | 30 | 80 | 22 | 70 | 90 | 20 | 12 | 7.5 | M12 | 24 |
9185 | 389 | 220 | 390 | 320 | 420 | 145 | 382 | 472 | 31 | 26 | 30 | 85 | 22 | 80 | 110 | 22 | 14 | 9 | M12 | 24 |
9195 | 465 | 250 | 451 | 380 | 480 | 170 | 442 | 532 | 31 | 26 | 35 | 90 | 26 | 95 | 135 | 25 | 14 | 9 | M20 | 34 |
型号 | 电机 | L | J | DM | H | W（KG） | ||
KW | HP | 极数 | ||||||
AHHM5-9175-Ratio | 3.7 | 5 | 4 | 700 | 184 | 238 | 411 | 173 |
AHHM8-9175-Ratio | 5.5 | 7.5 | 4 | 733 | 220 | 273 | 411 | 190 |
AHHM10-9175-Ratio | 7.5 | 10 | 4 | 770 | 220 | 273 | 411 | 200 |
AHHM15-9175-Ratio | 11 | 15 | 4 | 845 | 256 | 334 | 411 | 220 |
AHHM20-9175-Ratio | 15 | 20 | 4 | 888 | 256 | 334 | 411 | 235 |
AHHM25-9175-Ratio | 18.5 | 25 | 4 | 913 | 306 | 382 | 430 | 305 |
AHHM30-9175-Ratio | 22 | 30 | 4 | 913 | 306 | 382 | 430 | 305 |
AHHM5-9185-Ratio | 3.7 | 5 | 4 | 757 | 184 | 238 | 446 | 187 |
AHHM8-9185-Ratio | 5.5 | 7.5 | 4 | 777 | 220 | 273 | 446 | 194 |
AHHM10-9185-Ratio | 7.5 | 10 | 4 | 817 | 220 | 273 | 446 | 208 |
AHHM15-9185-Ratio | 11 | 15 | 4 | 885 | 256 | 334 | 446 | 220 |
AHHM20-9185-Ratio | 15 | 20 | 4 | 929 | 256 | 334 | 446 | 280 |
AHHM25-9185-Ratio | 18.5 | 25 | 4 | 952 | 306 | 382 | 460 | 343 |
AHHM30-9185-Ratio | 22 | 30 | 4 | 952 | 306 | 382 | 460 | 343 |
AHHM40-9185-Ratio | 30 | 40 | 4 | 990 | 306 | 382 | 460 | 343 |
AHHM8-9195-Ratio | 5.5 | 7.5 | 4 | 857 | 225 | 273 | 511 | 303 |
AHHM10-9195-Ratio | 7.5 | 10 | 4 | 890 | 225 | 273 | 511 | 315 |
AHHM15-9195-Ratio | 11 | 15 | 4 | 965 | 264 | 334 | 511 | 333 |
AHHM20-9195-Ratio | 15 | 20 | 4 | 1008 | 264 | 334 | 511 | 345 |
AHHM25-9195-Ratio | 18.5 | 25 | 4 | 1028 | 306 | 382 | 511 | 418 |
AHHM30-9195-Ratio | 22 | 30 | 4 | 1028 | 306 | 382 | 511 | 418 |
AHHM40-9195-Ratio | 30 | 40 | 4 | 1028 | 306 | 382 | 511 | 434 |
AHHM50-9195-Ratio | 37 | 50 | 4 | 1128 | 342 | 422 | 511 | 470 |
