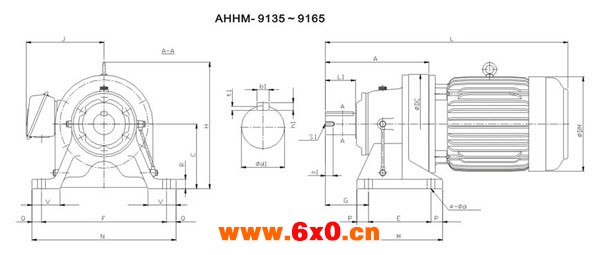

ADC系列摆线减速机尺寸图表AHHM-9135～9165
AHHM-9135～9165尺寸图表 | ||||||||||||||||||||
AHHM | A | C | DC | E | F | G | M | N | P | Q | R | V | d | 输出轴尺寸 | ||||||
d1 | L1 | b1 | h1 | t1 | S1 | m1 | ||||||||||||||
9135 | 240 | 150 | 230 | 145 | 290 | 100 | 199 | 334 | 27 | 22 | 23 | 65 | 18 | 50 | 70 | 14 | 9 | 5.5 | M10 | 18 |
9145 | 260 | 150 | 230 | 145 | 290 | 120 | 199 | 334 | 27 | 22 | 23 | 65 | 18 | 50 | 90 | 14 | 9 | 5.5 | M10 | 18 |
9155 | 260 | 160 | 230 | 145 | 290 | 120 | 199 | 334 | 27 | 22 | 23 | 70 | 18 | 50 | 90 | 14 | 9 | 5.5 | M10 | 18 |
9165 | 308 | 160 | 318 | 150 | 370 | 139 | 242 | 414 | 46 | 22 | 25 | 75 | 18 | 60 | 90 | 18 | 11 | 7 | M10 | 18 |
型号 | 电机 | L | J | DM | H | W（KG） | ||
KW | HP | 极数 | ||||||
AHHM1-9135-Ratio | 0.75 | 1 | 4 | 485 | 145 | 177 | 300 | 60 |
AHHM2-9135-Ratio | 1.5 | 2 | 4 | 525 | 150 | 200 | 300 | 68 |
AHHM3-9135-Ratio | 2.2 | 3 | 4 | 552 | 175 | 219 | 300 | 80 |
AHHM5-9135-Ratio | 3.7 | 5 | 4 | 572 | 188 | 238 | 303 | 88 |
AHHM8-9135-Ratio | 5.5 | 7.5 | 4 | 615 | 220 | 273 | 328 | 105 |
AHHM10-9135-Ratio | 7.5 | 10 | 4 | 653 | 225 | 273 | 328 | 116 |
AHHM1-9145-Ratio | 0.75 | 1 | 4 | 505 | 145 | 177 | 300 | 60 |
AHHM2-9145-Ratio | 1.5 | 2 | 4 | 545 | 152 | 200 | 300 | 68 |
AHHM3-9145-Ratio | 2.2 | 3 | 4 | 572 | 175 | 219 | 300 | 80 |
AHHM5-9145-Ratio | 3.7 | 5 | 4 | 592 | 188 | 238 | 303 | 90 |
AHHM8-9145-Ratio | 5.5 | 7.5 | 4 | 635 | 220 | 273 | 328 | 105 |
AHHM10-9145-Ratio | 7.5 | 10 | 4 | 675 | 225 | 273 | 328 | 116 |
AHHM1-9155-Ratio | 0.75 | 1 | 4 | 505 | 145 | 177 | 300 | 60 |
AHHM2-9155-Ratio | 1.5 | 2 | 4 | 545 | 152 | 200 | 300 | 68 |
AHHM3-9155-Ratio | 2.2 | 3 | 4 | 572 | 175 | 219 | 300 | 82 |
AHHM5-9155-Ratio | 3.7 | 5 | 4 | 592 | 188 | 238 | 303 | 93 |
AHHM8-9155-Ratio | 5.5 | 7.5 | 4 | 635 | 220 | 273 | 328 | 108 |
AHHM10-9155-Ratio | 7.5 | 10 | 4 | 675 | 225 | 273 | 328 | 120 |
AHHM15-9155-Ratio | 11 | 15 | 4 | 755 | 258 | 334 | 362 | 152 |
AHHM2-9165-Ratio | 1.5 | 2 | 4 | 595 | 152 | 200 | 320 | 110 |
AHHM3-9165-Ratio | 2.2 | 3 | 4 | 624 | 175 | 219 | 320 | 122 |
AHHM5-9165-Ratio | 3.7 | 5 | 4 | 642 | 185 | 238 | 320 | 131 |
AHHM8-9165-Ratio | 5.5 | 7.5 | 4 | 677 | 220 | 273 | 338 | 147 |
AHHM10-9165-Ratio | 7.5 | 10 | 4 | 715 | 220 | 273 | 338 | 158 |
AHHM15-9165-Ratio | 11 | 15 | 4 | 802 | 258 | 334 | 377 | 191 |
AHHM20-9165-Ratio | 15 | 20 | 4 | 845 | 258 | 334 | 377 | 208 |
