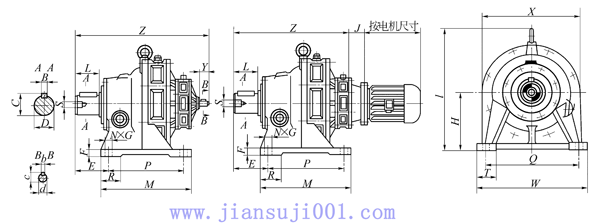

BWE、BWED型化工部标准行星摆线针轮减速机外形及安装尺寸
系列 | 机座号 | 外形尺寸 | 安装尺寸 | 输出轴尺寸 | 输入轴尺寸 | ||||||||||||||||||||
H | M | N | DC | A | LI | C | G | R | E | F | V | n-d | D | e | b | h | s | t | D1 | e1 | b1 | h1 | t1 | ||
B 化 工 部 标 准 | B20 | 306 | 200 | 320 | 240 | 319 | 368 | 140 | 144 | 20 | 150 | 280 | 60 | 4-13 | 45 | 68 | 14 | 48.5 | M8 | 39.5 | 15 | 22 | 5 | 17 | 12 |
B30 | 356 | 250 | 390 | 300 | 368 | 471 | 160 | 159 | 25 | 200 | 340 | 75 | 4-17 | 55 | 80 | 16 | 59 | M12 | 49 | 15 | 22 | 5 | 17 | 12 | |
B31 | 356 | 250 | 390 | 300 | 373 | 443 | 160 | 159 | 25 | 200 | 340 | 75 | 4-17 | 55 | 80 | 16 | 59 | M12 | 49 | 18 | 35 | 6 | 20.5 | 14.5 | |
B41 | 425 | 380 | 400 | 340 | 435 | 505 | 200 | 153 | 25 | 320 | 340 | 80 | 4-22 | 70 | 100 | 20 | 74.5 | M12 | 62.5 | 18 | 35 | 6 | 20.5 | 30 | |
B42 | 425 | 380 | 400 | 340 | 459 | 534 | 200 | 153 | 25 | 320 | 340 | 80 | 4-22 | 70 | 100 | 20 | 74.5 | M12 | 62.5 | 22 | 40 | 6 | 24.5 | 18.5 | |
B52 | 504 | 440 | 470 | 400 | 535 | 635 | 240 | 155 | 32 | 380 | 420 | 80 | 4-22 | 90 | 116 | 25 | 95 | M16 | 81 | 22 | 40 | 6 | 24.5 | 18.5 | |
B53 | 504 | 440 | 470 | 400 | 547 | 643 | 240 | 155 | 32 | 380 | 420 | 80 | 4-22 | 90 | 116 | 25 | 95 | M16 | 81 | 30 | 55 | 8 | 33 | 18.5 | |
B63 | 605 | 520 | 560 | 500 | 645 | 741 | 280 | 199 | 35 | 440 | 500 | 90 | 6-26 | 100 | 139 | 28 | 106 | M20 | 90 | 30 | 55 | 8 | 33 | 26 | |
B74 | 706 | 600 | 690 | 616 | 754 | 863 | 325 | 230 | 40 | 500 | 630 | 105 | 6-26 | 110 | 150 | 28 | 116 | M24 | 100 | 35 | 62 | 10 | 38 | 30 | |
B85 | 880 | 810 | 880 | 760 | 983 | 1113 | 420 | 324 | 50 | 660 | 800 | 160 | 6-32 | 130 | 202 | 32 | 137 | M30 | 119 | 45 | 70 | 14 | 48.5 | 35 | |
