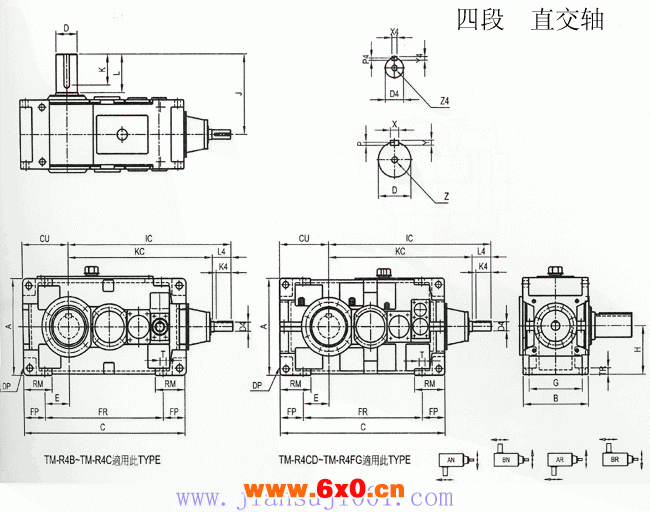

TM系列齿轮减速机四段直交轴外形及安装尺寸
型号 | A | B | C | CU | IC | KC | E | FP | FR | G | H | J | RM | T | TR | DP |
TM-R4B | 400 | 315 | 759 | 235 | 770 | 690 | 120 | 115 | 529 | 255 | 200 | 349 | 150 | 28 | 30 | 3/4" |
TM-R4C | 420 | 345 | 848 | 255 | 859 | 779 | 138.5 | 116.5 | 615 | 285 | 210 | 411 | 150 | 28 | 32 | 1" |
TM-R4CD | 490 | 345 | 918 | 286 | 898 | 819 | 171 | 115 | 688 | 285 | 245 | 411 | 150 | 28 | 32 | 1" |
TM-R4D | 530 | 380 | 970 | 291 | 950 | 870 | 151 | 135 | 700 | 310 | 265 | 440 | 180 | 35 | 35 | 1" |
TM-R4E | 600 | 430 | 1115 | 328 | 1080 | 1000 | 163 | 160 | 795 | 350 | 300 | 509 | 215 | 42 | 40 | 1" |
TM-R4EF | 670 | 430 | 1215 | 375 | 1133 | 1053 | 210 | 160 | 895 | 350 | 335 | 562 | 220 | 42 | 52 | 1" |
TM-R4F | 670 | 460 | 1275 | 370 | 1250 | 1140 | 206 | 160 | 955 | 380 | 335 | 582 | 220 | 42 | 52 | 1" |
TM-R4FG | 750 | 460 | 1375 | 414 | 1306 | 1196 | 249 | 160 | 1055 | 380 | 375 | 585 | 220 | 42 | 52 | 1" |
型号 | D | L | K | X | Y | P | Z | D4 | L4 | K4 | X4 | Y4 | P4 | Z4 | 重量KG | 油量L |
TM-R4B | 95m6 | 170 | 150 | 25 | 14 | 9 | M16 | 28k6 | 80 | 70 | 8 | 7 | 4 | M8 | 330 | 21 |
TM-R4C | 110m6 | 210 | 190 | 28 | 16 | 10 | M16 | 28k6 | 80 | 70 | 8 | 7 | 4 | M8 | 475 | 26 |
TM-R4CD | 120m6 | 210 | 185 | 32 | 18 | 11 | M16 | 28k6 | 80 | 70 | 8 | 7 | 4 | M8 | 535 | 31 |
TM-R4D | 125m6 | 210 | 185 | 32 | 18 | 11 | M16 | 30k6 | 80 | 70 | 8 | 7 | 4 | M10 | 690 | 41 |
TM-R4E | 145m6 | 250 | 225 | 36 | 20 | 12 | M20 | 35k6 | 80 | 70 | 10 | 8 | 5 | M10 | 980 | 60 |
TM-R4EF | 160m6 | 300 | 275 | 40 | 22 | 13 | M20 | 35k6 | 80 | 70 | 10 | 8 | 5 | M10 | 1200 | 70 |
TM-R4F | 165m6 | 300 | 275 | 40 | 22 | 13 | M20 | 45k6 | 110 | 95 | 14 | 9 | 5.5 | M10 | 1410 | 76 |
TM-R4FG | 175m6 | 300 | 270 | 45 | 25 | 15 | M20 | 45k6 | 110 | 95 | 14 | 9 | 5.5 | M10 | 1675 | 93 |
