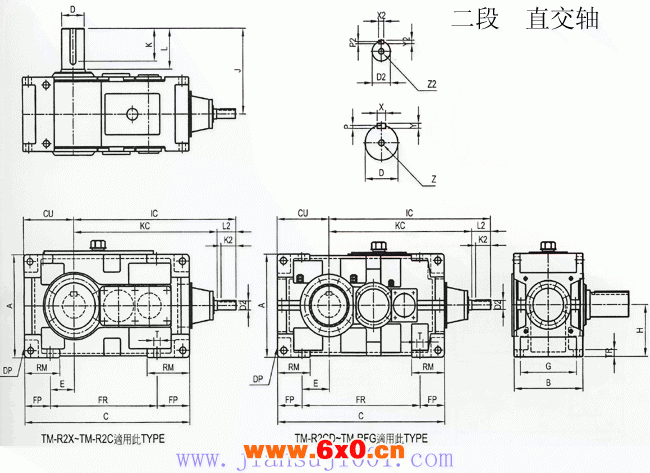

TM系列齿轮减速机二段直交轴外形及安装尺寸
型号 | A | B | C | CU | IC | KC | E | FP | FR | G | H | J | RM | T | TR | DP |
TM-R2X | 270 | 205 | 440 | 160 | 507 | 427 | 90 | 70 | 300 | 135 | 170 | 245 | 95 | 15 | 22 | 3/4" |
TM-R2Y | 310 | 235 | 505 | 175 | 545 | 465 | 95 | 80 | 345 | 155 | 190 | 285 | 110 | 19 | 25 | 3/4" |
TM-R2A | 320 | 265 | 590 | 200 | 645 | 535 | 110 | 90 | 410 | 215 | 160 | 330 | 120 | 24 | 28 | 3/4" |
TM-R2AB | 370 | 265 | 640 | 219 | 676 | 566 | 129 | 90 | 460 | 215 | 185 | 330 | 120 | 24 | 28 | 3/4" |
TM-R2B | 400 | 315 | 685 | 235 | 705 | 595 | 120 | 115 | 455 | 255 | 200 | 349 | 150 | 28 | 30 | 3/4" |
TM-R2C | 420 | 345 | 775 | 255 | 755 | 645 | 138.5 | 116.5 | 542 | 285 | 210 | 411 | 150 | 28 | 32 | 1" |
TM-R2CD | 490 | 345 | 845 | 286 | 794 | 684 | 171 | 115 | 615 | 285 | 245 | 411 | 150 | 28 | 32 | 1" |
TM-R2D | 530 | 380 | 885 | 291 | 865 | 725 | 151 | 135 | 615 | 310 | 265 | 440 | 180 | 35 | 35 | 1" |
TM-R2E | 600 | 430 | 1020 | 328 | 965 | 825 | 163 | 160 | 700 | 350 | 300 | 509 | 215 | 42 | 40 | 1" |
TM-R2EF | 670 | 430 | 1120 | 375 | 1018 | 878 | 210 | 160 | 800 | 350 | 335 | 562 | 220 | 42 | 52 | 1" |
TM-R2F | 670 | 460 | 1155 | 370 | 1080 | 940 | 205 | 160 | 835 | 380 | 335 | 582 | 220 | 42 | 52 | 1" |
TM-R2FG | 750 | 460 | 1255 | 414 | 1136 | 996 | 249 | 160 | 935 | 380 | 375 | 585 | 220 | 42 | 52 | 1" |
型号 | D | L | K | X | Y | P | Z | D2 | L2 | K2 | X2 | Y2 | P2 | Z2 | 重量KG | 油量L |
TM-R2X | 58m6 | 110 | 95 | 18 | 11 | 7 | M10 | 28k6 | 80 | 70 | 8 | 7 | 4 | M8 | 100 | 7 |
TM-R2Y | 70m6 | 140 | 125 | 20 | 12 | 7.5 | M12 | 35k6 | 80 | 70 | 10 | 8 | 5 | M10 | 150 | 9 |
TM-R2A | 80m6 | 170 | 150 | 22 | 14 | 9 | M16 | 40k6 | 110 | 95 | 12 | 8 | 5 | M10 | 215 | 9 |
TM-R2AB | 90m6 | 170 | 150 | 25 | 14 | 9 | M16 | 40k6 | 110 | 95 | 12 | 8 | 5 | M10 | 240 | 12 |
TM-R2B | 95m6 | 170 | 150 | 25 | 14 | 9 | M16 | 45k6 | 110 | 95 | 14 | 9 | 5.5 | M10 | 315 | 21 |
TM-R2C | 110m6 | 210 | 190 | 28 | 16 | 10 | M16 | 50k6 | 110 | 95 | 16 | 10 | 6 | M10 | 450 | 23 |
TM-R2CD | 120m6 | 210 | 185 | 32 | 18 | 11 | M16 | 50k6 | 110 | 95 | 16 | 10 | 6 | M10 | 510 | 28 |
TM-R2D | 125m6 | 210 | 185 | 32 | 18 | 11 | M16 | 60m6 | 140 | 125 | 18 | 11 | 7 | M12 | 620 | 29 |
TM-R2E | 145m6 | 250 | 225 | 36 | 20 | 12 | M20 | 65m6 | 140 | 125 | 18 | 11 | 7 | M12 | 935 | 40 |
TM-R2EF | 160m6 | 300 | 275 | 40 | 22 | 13 | M20 | 65m6 | 140 | 125 | 18 | 11 | 7 | M12 | 1190 | 50 |
TM-R2F | 165m6 | 300 | 275 | 40 | 22 | 13 | M20 | 75m6 | 140 | 150 | 20 | 12 | 7.5 | M12 | 1325 | 51 |
TM-R2FG | 175m6 | 300 | 270 | 45 | 25 | 15 | M20 | 75m6 | 140 | 150 | 20 | 12 | 7.5 | M12 | 1580 | 62 |
