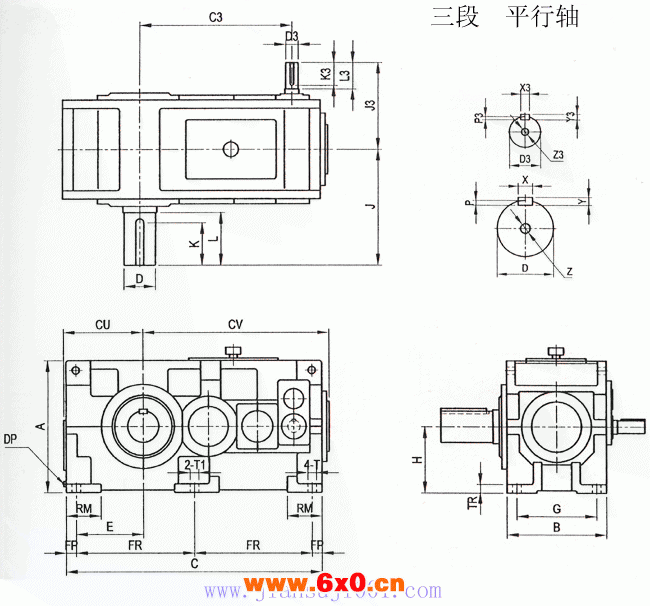

TK系列齿轮减速机三段平行轴外形及安装尺寸
型号 | A | B | C | C3 | CU | CV | E | FP | FR | G | H | J | J3 | RM | T | T1 | TR | DR |
TK-P3A | 360 | 235 | 620 | 343 | 205 | 439 | 165 | 30 | 275 | 190 | 180 | 300 | 241 | 95 | 24 | - | 28 | 1 |
TK-P3B | 400 | 270 | 700 | 398 | 230 | 511 | 185 | 40 | 310 | 215 | 200 | 349 | 256 | 105 | 28 | - | 30 | 1 |
TK-P3C | 450 | 310 | 820 | 467 | 270 | 588 | 225 | 40 | 370 | 255 | 225 | 411 | 304 | 115 | 28 | 24 | 32 | 1 |
TK-P3D | 530 | 350 | 940 | 540 | 305 | 669 | 250 | 50 | 420 | 280 | 265 | 440 | 329 | 130 | 35 | 24 | 35 | 1-1/4 |
TK-P3E | 600 | 400 | 1080 | 630 | 340 | 782 | 275 | 60 | 480 | 320 | 300 | 509 | 354 | 150 | 42 | 28 | 40 | 1-1/4 |
TK-P3F | 670 | 440 | 1260 | 725 | 380 | 926 | 315 | 60 | 570 | 360 | 335 | 582 | 405 | 175 | 42 | 35 | 45 | 1-1/4 |
TK-P3G | 750 | 570 | 1440 | 837 | 410 | 1070 | 345 | 60 | 660 | 480 | 375 | 650 | 470 | 270 | 42 | 42 | 50 | 1-1/2 |
TK-P3H | 800 | 570 | 1500 | 867 | 440 | 1100 | 375 | 60 | 690 | 480 | 400 | 700 | 470 | 290 | 42 | 42 | 50 | 1-1/2 |
TK-P3I | 900 | 650 | 1680 | 984 | 485 | 1238 | 410 | 70 | 770 | 560 | 450 | 740 | 515 | 320 | 48 | 48 | 55 | 1-1/2 |
TK-P3J | 1000 | 710 | 1910 | 1099 | 550 | 1403 | 470 | 75 | 880 | 610 | 500 | 830 | 575 | 350 | 56 | 56 | 60 | 1-1/2 |
型号 | D | L | K | X | Y | P | Z | D3 | L3 | K3 | X3 | Y3 | P3 | Z3 | 重量KG | 油量L |
TK-P3A | 78m6 | 140 | 120 | 22 | 14 | 9 | M16 | 30m6 | 80 | 70 | 8 | 7 | 4 | M8 | 195 | 12 |
TK-P3B | 95m6 | 170 | 150 | 25 | 14 | 9 | M16 | 35m6 | 80 | 70 | 10 | 8 | 5 | M8 | 275 | 17 |
TK-P3C | 110m6 | 210 | 190 | 28 | 16 | 10 | M16 | 40m6 | 110 | 95 | 12 | 8 | 5 | M10 | 410 | 26 |
TK-P3D | 125m6 | 210 | 185 | 32 | 18 | 11 | M16 | 50m6 | 110 | 95 | 14 | 9 | 5.5 | M10 | 630 | 42 |
TK-P3E | 145m6 | 250 | 225 | 36 | 20 | 12 | M20 | 55m6 | 110 | 95 | 16 | 10 | 6 | M10 | 900 | 60 |
TK-P3F | 165m6 | 300 | 275 | 40 | 22 | 13 | M20 | 65m6 | 140 | 125 | 18 | 11 | 7 | M12 | 1290 | 86 |
TK-P3G | 180m6 | 300 | 275 | 45 | 25 | 15 | M20 | 65m6 | 140 | 125 | 18 | 11 | 7 | M12 | 2100 | 120 |
TK-P3H | 190m6 | 350 | 320 | 45 | 25 | 15 | M20 | 65m6 | 140 | 125 | 18 | 11 | 7 | M12 | 2350 | 155 |
TK-P3I | 220m6 | 350 | 320 | 50 | 28 | 17 | M24 | 75m6 | 140 | 125 | 20 | 12 | 7.5 | M12 | 3340 | 225 |
TK-P3J | 240m6 | 410 | 375 | 56 | 32 | 20 | M24 | 80m6 | 170 | 150 | 22 | 14 | 9 | M16 | 4460 | 325 |
