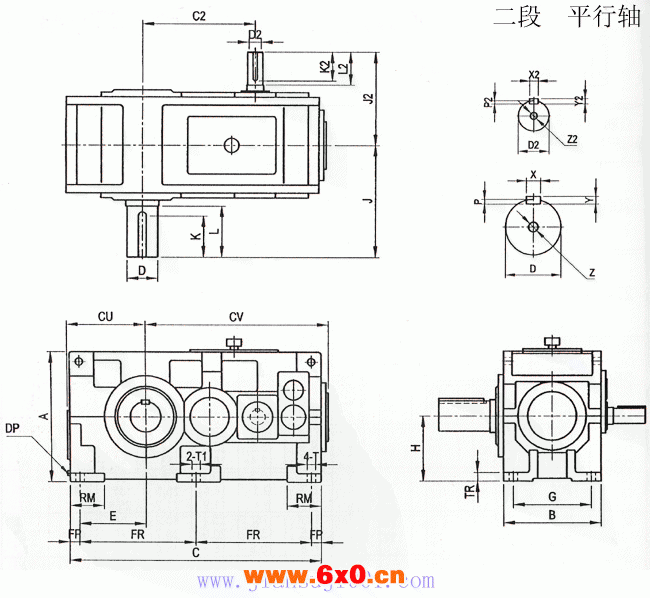

TK系列齿轮减速机二段平行轴外形安装尺寸
型号 | A | B | C | C2 | CU | CV | E | FP | FR | G | H | J | J2 | RM | T | T1 | TR | DR |
TK-P2A | 360 | 235 | 620 | 264 | 205 | 439 | 165 | 30 | 275 | 190 | 180 | 300 | 269 | 95 | 24 | - | 28 | 1 |
TK-P2B | 400 | 270 | 700 | 306 | 230 | 511 | 185 | 40 | 310 | 215 | 200 | 349 | 284 | 105 | 28 | - | 30 | 1 |
TK-P2C | 450 | 310 | 820 | 358 | 270 | 588 | 225 | 40 | 370 | 255 | 225 | 411 | 303 | 115 | 28 | 24 | 32 | 1 |
TK-P2D | 530 | 350 | 940 | 414 | 305 | 669 | 250 | 50 | 420 | 280 | 265 | 440 | 360 | 130 | 35 | 24 | 35 | 1-1/4 |
TK-P2E | 600 | 400 | 1080 | 482 | 340 | 782 | 275 | 60 | 480 | 320 | 300 | 509 | 385 | 150 | 42 | 28 | 40 | 1-1/4 |
TK-P2F | 670 | 440 | 1260 | 556 | 380 | 926 | 315 | 60 | 570 | 360 | 335 | 582 | 434 | 175 | 42 | 35 | 45 | 1-1/4 |
TK-P2G | 750 | 570 | 1440 | 640 | 410 | 1070 | 345 | 60 | 660 | 480 | 375 | 650 | 500 | 270 | 42 | 42 | 50 | 1-1/2 |
TK-P2H | 800 | 570 | 1500 | 670 | 440 | 1100 | 375 | 60 | 690 | 480 | 400 | 700 | 500 | 290 | 42 | 42 | 50 | 1-1/2 |
TK-P2I | 900 | 650 | 1680 | 758 | 485 | 1238 | 410 | 70 | 770 | 560 | 450 | 740 | 585 | 320 | 48 | 48 | 55 | 1-1/2 |
TK-P2J | 1000 | 710 | 1910 | 873 | 550 | 1403 | 470 | 75 | 880 | 610 | 500 | 830 | 615 | 350 | 56 | 56 | 60 | 1-1/2 |
型号 | D | L | K | X | Y | P | Z | D2 | L2 | K2 | X2 | Y2 | P2 | Z2 | 重量KG | 油量L |
TK-P2A | 78m6 | 140 | 120 | 22 | 14 | 9 | M16 | 40m6 | 110 | 95 | 12 | 8 | 5 | M10 | 190 | 11 |
TK-P2B | 95m6 | 170 | 150 | 25 | 14 | 9 | M16 | 50m6 | 110 | 95 | 14 | 9 | 5.5 | M10 | 265 | 16 |
TK-P2C | 110m6 | 210 | 190 | 28 | 16 | 10 | M16 | 55m6 | 110 | 95 | 16 | 10 | 6 | M10 | 400 | 24 |
TK-P2D | 125m6 | 210 | 185 | 32 | 18 | 11 | M16 | 65m6 | 140 | 125 | 18 | 11 | 7 | M12 | 610 | 37 |
TK-P2E | 145m6 | 250 | 225 | 36 | 20 | 12 | M20 | 75m6 | 140 | 125 | 20 | 2 | 7.5 | M12 | 880 | 55 |
TK-P2F | 165m6 | 300 | 275 | 40 | 22 | 13 | M20 | 85m6 | 170 | 150 | 22 | 14 | 9 | M16 | 1250 | 79 |
TK-P2G | 180m6 | 300 | 275 | 45 | 25 | 15 | M20 | 90m6 | 170 | 150 | 25 | 14 | 9 | M16 | 2050 | 120 |
TK-P2H | 190m6 | 350 | 320 | 45 | 25 | 15 | M20 | 90m6 | 170 | 150 | 25 | 14 | 9 | M16 | 2300 | 140 |
TK-P2I | 220m6 | 350 | 320 | 50 | 28 | 17 | M24 | 100m6 | 210 | 190 | 28 | 16 | 10 | M16 | 3290 | 205 |
TK-P2J | 240m6 | 410 | 375 | 56 | 32 | 20 | M24 | 110m6 | 210 | 190 | 28 | 16 | 10 | M16 | 4410 | 290 |
